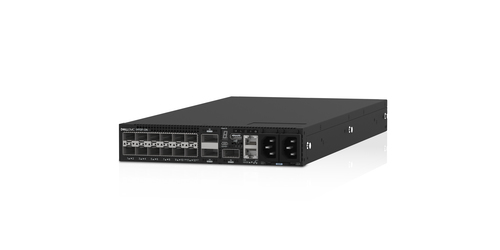

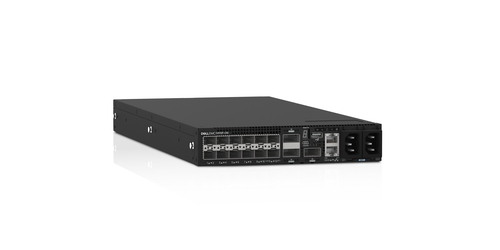

Dell S-Series S4112 Managed L2/L3 1U Black
Model S4112Part no. XNK6WEAN 884116417644
37 specifications
- Type1U
- OSOS10
- Weight3.76 kg
- ColourBlack
- Switch typeManaged
- SFP module slots quantity1
Overview
- Type
- 1U
- OS
- OS10
- Weight
- 3.76 kg
- Colour
- Black
- Switch type
- Managed
- SFP module slots quantity
- 1
- Brand
- Dell
- Category
- Network Switch
- Model
- S4112
- Part number
- XNK6W
- EAN / UPC
- 884116417644, 5397184124581, 5397184649183
- Also known as
- DELL S-Series S4112 Managed L2/L3 1U Black
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 1 |
| SFP+ module slots quantity | 12 |
| QSFP+ module slots quantity | 3 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 840 Gbit/s |
| Throughput | 630 Mpps |
| Latency (10-100 Mbps) | 800 µs |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Ventilation system | Front-to-back airflow |
| Safety | UL/CSA 60950-L Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition Including all National Deviations and Group Differences, EN 60825-1 Safety of Laser Products Part1: Equipment Classification Requirements and User’s Guide, EN 60825-2 Safety of Laser Products Part 2: Safety of Optic |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS10 |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 90 W |
| Power consumption (max) | 180 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 614 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.76 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
