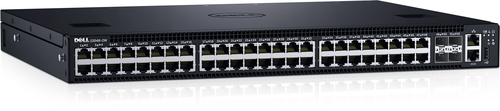

S-Series S3248T-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Model S3248T-ONPart no. S3248T264BRZ
57 specifications
- Memory16000 MB
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 16000 MB
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S3248T-ON
- Part numbers
- S3248T264BRZ, S3248T272
- Also known as
- DELL S-Series S3248T-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Number of management ports | 1 pc(s) |
| Console port | Mini USB-B/RS-232 |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN) |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 576 Gbit/s |
| Forwarding rate | 800 Mpps |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Authentication type | AAA, IEEE 802.1x, RADIUS, TACACS+ |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP, OSPFv2, OSPFv3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Redundant fans support | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR4-SDRAM |
| Internal memory | 16000 MB |
| Flash memory | 32000 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 40 - 60 V |
| Power consumption (max) | 212 W |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 349.06 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
