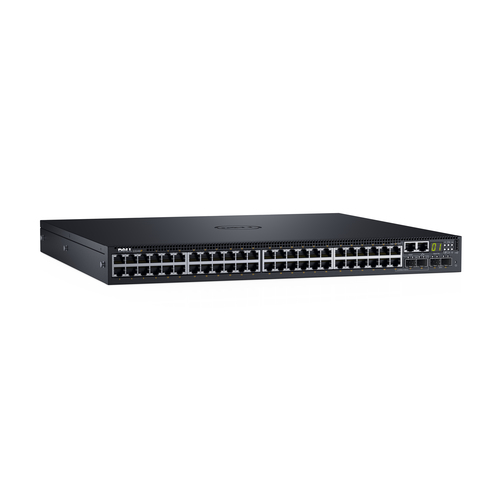

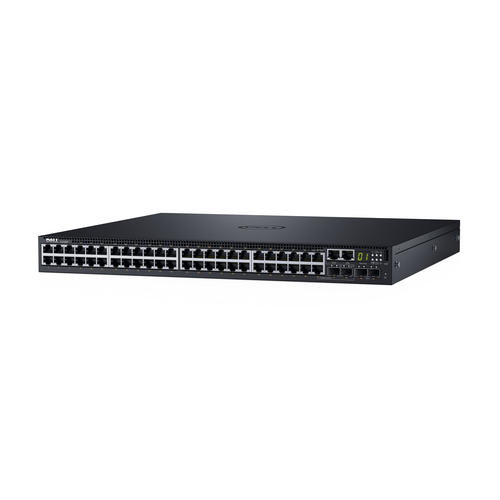

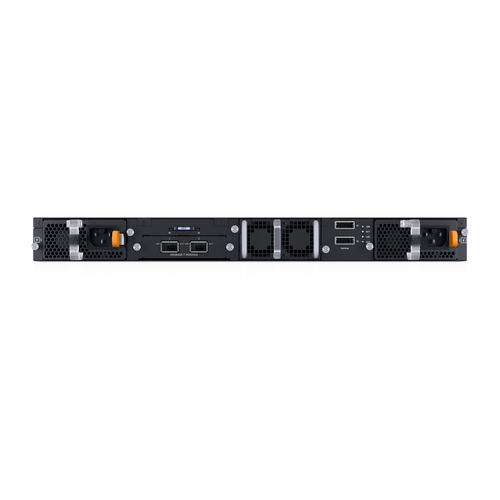

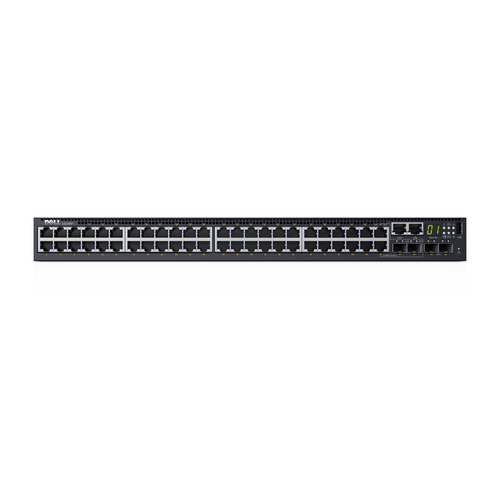

S-Series S3148 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black, Stainless steel
Model S3148Part no. S3148_1.4EAN 5397184330210
40 specifications
- Memory2048 MB
- Type1U
- ColourBlack, Stainless steel
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
Overview
- Memory
- 2048 MB
- Type
- 1U
- Colour
- Black, Stainless steel
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- Brand
- Dell
- Category
- Network Switch
- Model
- S3148
- Part numbers
- S3148_1.4, S3148SNSFY22Q4MX, S3148SNSFY23Q1MX, 210-AFTB, S3148SNSFY23Q2MX, S3148SNSFY23Q4MX +1 more
- EAN / UPC
- 5397184330210
- Also known as
- DELL S-Series S3148 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black, Stainless steel
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 56000 entries |
| Switching capacity | 260 Gbit/s |
| Forwarding rate | 193 Mpps |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| Authentication type | RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Stainless steel |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Input current | 15 A |
| Power consumption (typical) | 200 W |
| Power consumption (max) | 74.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Heat dissipation | 221.11 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 407 mm |
| Height | 43.5 mm |
