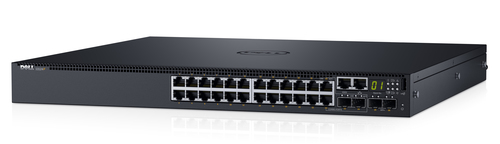

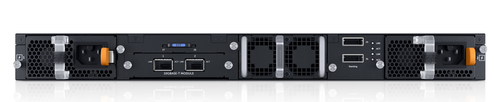

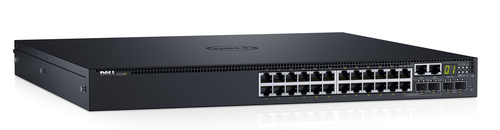

Dell PowerConnect S3124P Managed L2/L3 1U Black
Model S3124PPart no. DNS3124PEAN 5397184219676
34 specifications
- Type1U
- Weight6.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 6.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S3124P
- Part numbers
- DNS3124P, S3124P_1.4, S3124PSNSFY22Q4MX, S3124PSNSFY23Q1MX, 210-AFSZ, S3124PSNSFY23Q2MX +2 more
- EAN / UPC
- 5397184219676
- Also known as
- DELL PowerConnect S3124P Managed L2/L3 1U Black
Specifications
34 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Security
| Specification | Value |
|---|---|
| Supports separation | PoE+ |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Error |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | DNS3124P |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.6 kg |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 7 |
| Carbon emissions, energy usage (kg of CO2e) | 1360 |
| Carbon emissions, logistics (kg of CO2e) | 119 |
| Carbon emissions, manufacturing (kg of CO2e) | 2388 |
| PAIA version | 1.2.8, 2020 |
| Total carbon emissions, standard deviation (kg of CO2e) | 1220 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2514 |
| Total carbon footprint (kg of CO2e) | 3880 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
