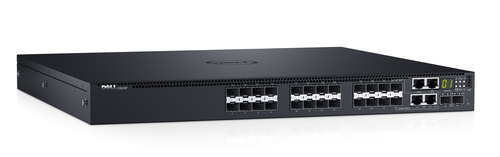

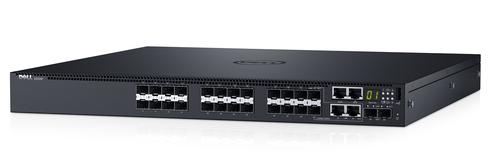

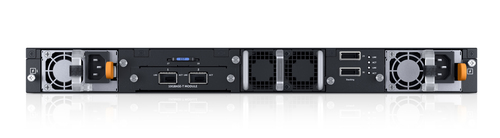

Dell S-Series S3124F Managed L2/L3 1U Black
Model S3124FPart no. DNS3124FEAN 5397184219683
51 specifications
- Type1U
- Weight6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S3124F
- Part numbers
- DNS3124F, S3124FSNSFY22Q4MX, S3124FSNSFY23Q1MX, 210-AFSY, S3124FSNSFY23Q2MX, S3124FSNSFY23Q4MX +2 more
- EAN / UPC
- 5397184219683, 884116251927
- Also known as
- DELL S-Series S3124F Managed L2/L3 1U Black
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 24 |
| QSFP+ module slots quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 2 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 56000 entries |
| Switching capacity | 212 Gbit/s |
| Forwarding rate | 158 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Authentication type | RADIUS, TACACS+ |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Error |
Performance
| Specification | Value |
|---|---|
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packaging content | Power Cord, 125V, 15A, 10 Feet, NEMA 5-15/C13 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 149 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Heat dissipation | 228.96 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 407 mm |
| Height | 43.5 mm |
| Weight | 6 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
