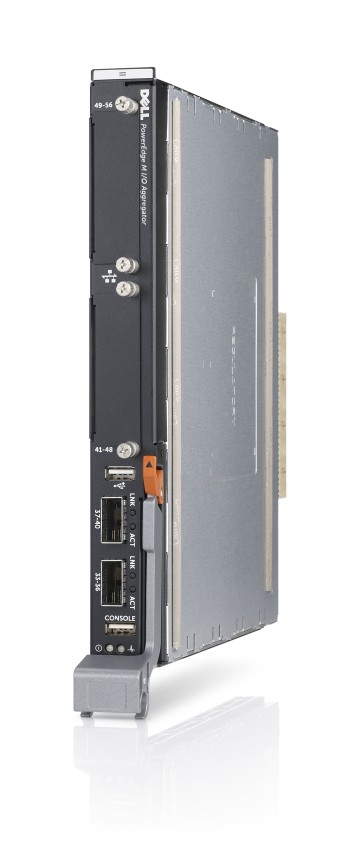

Dell PowerEdge M I/0 Aggregator

Dell PowerEdge M I/0 Aggregator

Model PowerEdge M I/0 AggregatorPart no. 210-40652EAN 5397063839339

34 specifications
  • ColourBlack, Silver
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
  • 10G supportYes
  • MAC address table128000 entries
  • Physical stacking (units)6
See all specifications

Overview

Colour
Black, Silver
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
10G support
Yes
MAC address table
128000 entries
Physical stacking (units)
6
Brand
Dell
Model
PowerEdge M I/0 Aggregator
Part number
210-40652
EAN / UPC
5397063839339
Also known as
DELL PowerEdge M I/0 Aggregator Managed L2 10G Ethernet (100/1000/10000) Black, Silver

Specifications

34 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL2
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Installed QSFP+ modules quantity2
Fiber optic connectorQSFP+
USB 2.0 ports quantity2

Network

Networking standardsIEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Full duplexYes
Link aggregationYes
Number of VLANs4094

Data transmission

MAC address table128000 entries
Switching capacity1280 Gbit/s
Store-and-forwardYes
Packet buffer memory9 MB

Multicast features

Multicast supportYes

Protocols

Management protocolsSMIv1, SNMPv1, SNMPv2, IP, TCP, UDP
Supported network protocolsUDP, IPv4, ICMP, TCP, ARP, NTPv3, CIDR, IPv6

Design

Rack mountingYes
StackableYes
Product colourBlack, Silver

Performance

Physical stacking (units)6

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)123 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 95%
Heat dissipation955.36 BTU/h
