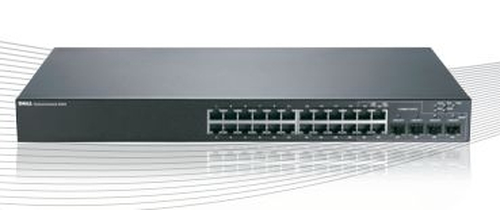

Dell PowerConnect 6248, 3Y NBD
Model PowerConnect 6248, 3Y NBDPart no. 210-17313-3NBD
51 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight6.06 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 6.06 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- PowerConnect 6248, 3Y NBD
- Part number
- 210-17313-3NBD
- Also known as
- DELL PowerConnect 6248, 3Y NBD Managed L3 Black
Specifications
51 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| MIB support | MIB II, Bridge MIB, SMIv2, E-like MIB, RMON, TCP, UDP, ENTITY, RMON |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 184 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
| Supported network protocols | RIP, OSPF v1/v2/v3, CIDR, ICMP, IRDP, VRRP, ARP, IGMP v2, DVMRP, Telnet, HTTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Input voltage | 110 - 240 V |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 387 x 43.2 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.06 kg |
