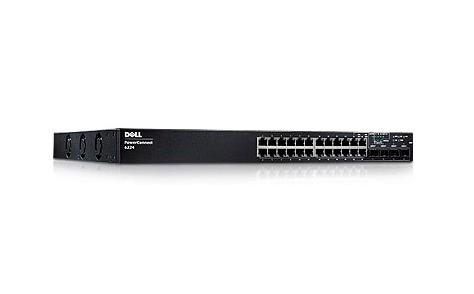

Dell PowerConnect 6224P
Model PowerConnect 6224PPart no. 210-19067-3NBD
57 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.54 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.54 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- PowerConnect 6224P
- Part number
- 210-19067-3NBD
- Also known as
- DELL PowerConnect 6224P Managed L3 Power over Ethernet (PoE) Black
Specifications
57 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIBII, Bridge-MIB, SMIv2, M-t-M, TACACS+, Etherlike-MIB, RMON, TCP, UDP, ENTITY-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 136 Gbit/s |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv2, SNMPv1/v2c/v3 |
| Supported network protocols | Telnet, RIPv1/v2, VRRP, OSPFv1/v2/v3, CIDR, ICMP, IRDP, VRRP, ARP, DVMRP, TCP/UDP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 387 x 43.2 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 95 mpps |
| Wi-Fi | No |
| Dimensions (W x D x H) (imperial) | 439.4 x 386.1 x 43.2 mm (17.3 x 15.2 x 1.7") |
| Weight (imperial) | 5.53 kg (12.2 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.54 kg |
