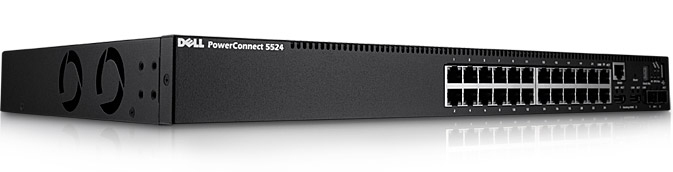

Dell PowerConnect 5524
Model PowerConnect 5524Part no. 210-34478-3NBD
28 specifications
- Speed10 Gbit/s
- ConnectivityWired
- Weight3.33 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Weight
- 3.33 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- PowerConnect 5524
- Part number
- 210-34478-3NBD
- Also known as
- DELL PowerConnect 5524 Managed L3
Specifications
28 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 2 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 128 Gbit/s |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, HTTP, HTTPS/SSL, SSH and SNMP RADIUS, TACACS+ |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Flash memory | 16 MB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 255 x 432 mm |
| Connectivity technology | Wired |
| Bandwidth | 40 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.33 kg |
