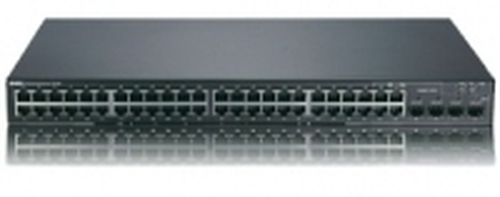

Dell PowerConnect 5424

Dell PowerConnect 5424

Model PowerConnect 5424Part no. 210-19702-3NBD

43 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight3.6 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Weight
3.6 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
Dell
Model
PowerConnect 5424
Part numbers
210-19702-3NBD, 210-19702-4NBD
Also known as
DELL PowerConnect 5424 Managed L2 Black

Specifications

43 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Web-based managementYes
MIB supportFC 1213 MIB II, RFC 1215, RFC 1286, RFC 1442 SMIv2, RFC 1451, RFC 1492 TACACS+, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, Dell 5424

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
SFP module slots quantity4
SFP/SFP+ slots quantity4
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3I, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
Number of VLANs4000

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity48 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1, SNMP v2c, RMON, TFTP, CLI, Telnet, SNTP, BootP/DHCP
Data link protocolsEthernet
Supported network protocolsTelnet, HTTP, HTTPS/SSL, SSH, SNMP

Design

StackableYes
Product colourBlack

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)40 x 255 x 44 mm
Connectivity technologyWired
Authentication methodRADIUS, TACACS+
Networking featuresGigabit Ethernet

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)32 - 113 °F

Weight & dimensions

Weight3.6 kg
