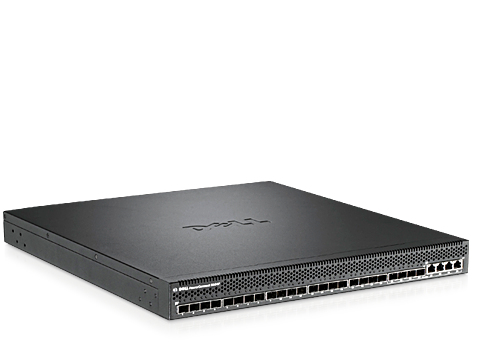

Dell PowerConnect pc8024f Managed L3 Black
Model pc8024fPart no. PC8024F
52 specifications
- Speed10 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- pc8024f
- Part number
- PC8024F
- Also known as
- DELL PowerConnect pc8024f Managed L3 Black
Specifications
52 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | RIPv1/2, OSPFv1/2/3, CIDR, ICMP, IRDP, VRRP, ARP, DVMRP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP/SFP+ slots quantity | 24 |
| SFP+ module slots quantity | 24 |
| Fiber optic connector | SFP+ |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 480 Gbit/s |
| Number of queues | 8 |
| Maximum data transfer rate | 10 Gbit/s |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv2, SNMPv1/2/3, MLDv1/2 |
| Switching protocols | LACP |
| Data link protocols | SSH, LLDP |
| Supported network protocols | IPv4, IPv6, HTTP, TCP/UDP, DSCP |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 23.7 A |
| Power consumption (typical) | 160.78 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 357.14 mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
