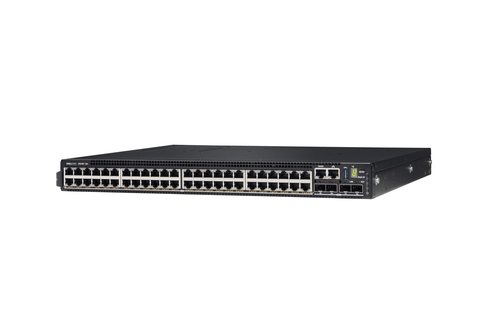

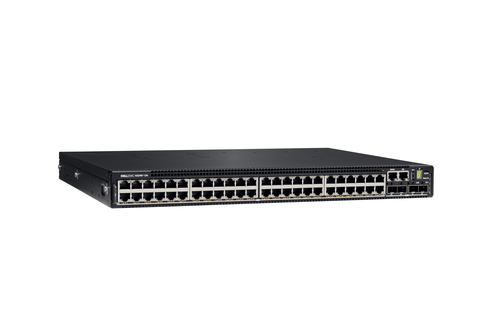

N-Series N3248P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model N3248PPart no. N3248P_1.1EAN 884116465836
50 specifications
- Weight7.57 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 802.3at
- Rack mountingYes
Overview
- Weight
- 7.57 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 802.3at
- Rack mounting
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- N3248P
- Part numbers
- N3248P_1.1, N3248P_1.2
- EAN / UPC
- 884116465836
- Also known as
- DELL N-Series N3248P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
50 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Console port | Micro-USB |
| QSFP28 ports quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3at |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Output voltage | 125 V |
| Output current | 15 A |
| Power consumption (typical) | 1050 W |
| Power cable length | 3 m |
| Power cable connector 1 | NEMA 5-15P |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 1440 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 383.05 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 7.57 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
