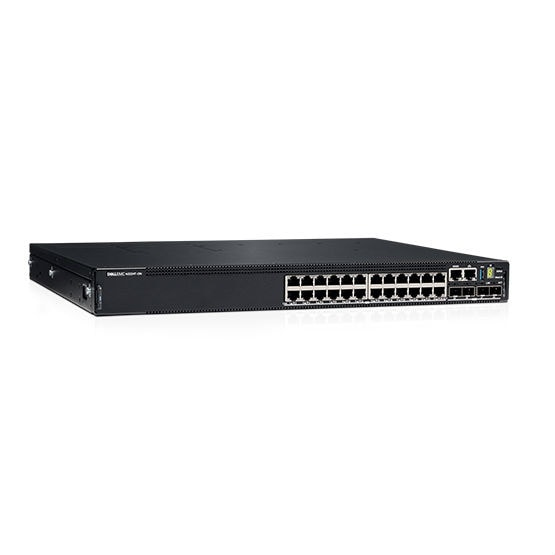

N3224T-ON Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Model N3224T-ONPart no. N3224T_1.7EAN 884116365655
33 specifications
- Type1U
- OSOS6
- Weight6.24 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Type
- 1U
- OS
- OS6
- Weight
- 6.24 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- N3224T-ON
- Part numbers
- N3224T_1.7, N3224T_1.8, N3224T-ONF, DNN3224T
- EAN / UPC
- 884116365655, 5397184363461, 884116432395
- Also known as
- DELL N3224T-ON Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Specifications
33 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+, SFP28 |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4 e IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS6 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 250 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 53.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
Other features
| Specification | Value |
|---|---|
| Bundled software | Deployment Services as INSTALL DECLINED - Switch deployment performed by Customer or 3rd party |
| Packaging content | Power Cord, 125V, 13A, 6 Feet, C15 to NEMA 5-15P, for POE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 6.24 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
