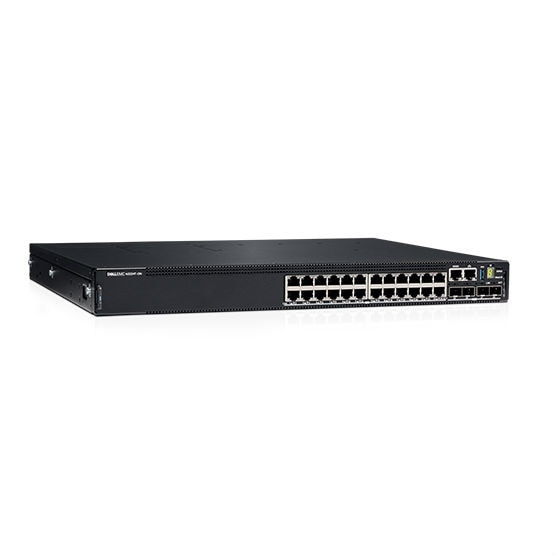

N-Series N3224T Managed L2/L3 Fast Ethernet (10/100) 1U Black
Model N3224TPart no. N3224T-ONREAN 884116365662
44 specifications
- Type1U
- OSOS6
- Weight6.24 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Type
- 1U
- OS
- OS6
- Weight
- 6.24 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- N3224T
- Part numbers
- N3224T-ONR, N3224T_1.1, N3224T_1.2
- EAN / UPC
- 884116365662, 884116465805
- Also known as
- DELL N-Series N3224T Managed L2/L3 Fast Ethernet (10/100) 1U Black
Specifications
44 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | QSFP28, SFP+ |
| Console port | Micro-USB |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 1560 Gbit/s |
| Packet buffer memory | 8 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS6 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bundled software | INSTALL DECLINED - Switch deployment performed by Customer or 3rd party |
| Packaging content | Power Cord, 125V, 15A, 10 Feet, NEMA 5-15/C13 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 686 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 6.24 kg |
