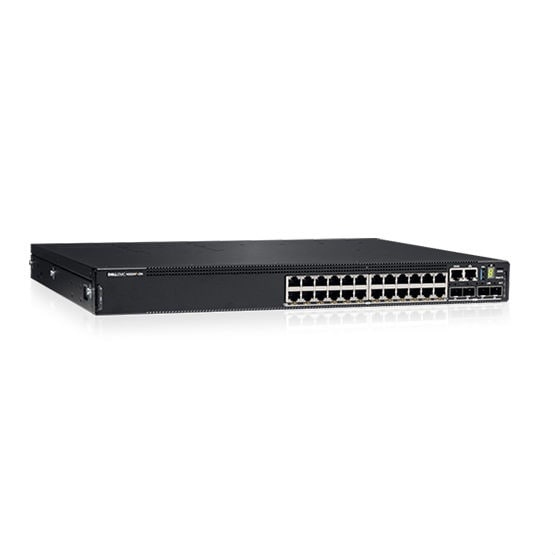

N-Series N3224P-ON Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model N3224P-ONPart no. N3224P_1.7EAN 5397184330258
35 specifications
- Type1U
- OSOS6
- Weight7.08 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Type
- 1U
- OS
- OS6
- Weight
- 7.08 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- N3224P-ON
- Part numbers
- N3224P_1.7, N3224PX, N3224P_1.8, 210-ASPU, DNN3224P, N3224P-ONF
- EAN / UPC
- 5397184330258, 884116365631, 884116432401, 5397184363478
- Also known as
- DELL N-Series N3224P-ON Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+, SFP28 |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3at |
| 10G support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4 e IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS6 |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 1287 W |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 7.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
