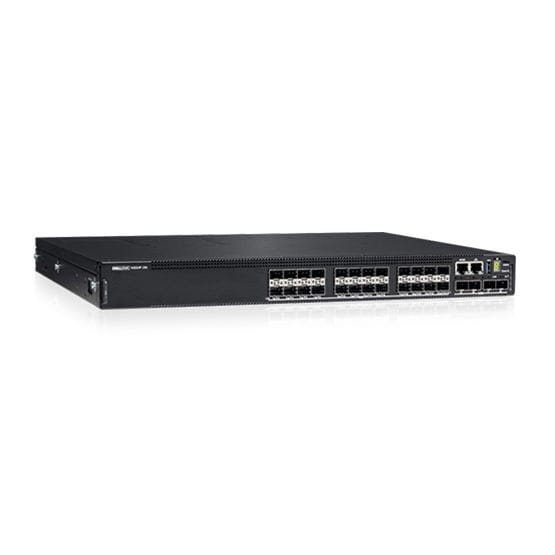

N-Series N3224F-ON Managed L2 1U Black
Model N3224F-ONPart no. N3224F-ONFEAN 884116365679
32 specifications
- Type1U
- OSOS6
- Weight6.46 kg
- ColourBlack
- Switch typeManaged
- SFP module slots quantity24
Overview
- Type
- 1U
- OS
- OS6
- Weight
- 6.46 kg
- Colour
- Black
- Switch type
- Managed
- SFP module slots quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- N3224F-ON
- Part numbers
- N3224F-ONF, DNN3224F
- EAN / UPC
- 884116365679, 5397184363485
- Also known as
- DELL N-Series N3224F-ON Managed L2 1U Black
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | QSFP28, SFP, SFP+ |
| QSFP28 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3bt |
| 10G support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4 e IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS6 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 67.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bundled software | INSTALL DECLINED - Switch deployment performed by Customer or 3rd party |
| Packaging content | Power Cord, 125V, 15A, 10 Feet, NEMA 5-15/C13 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 416.55 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 6.46 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
