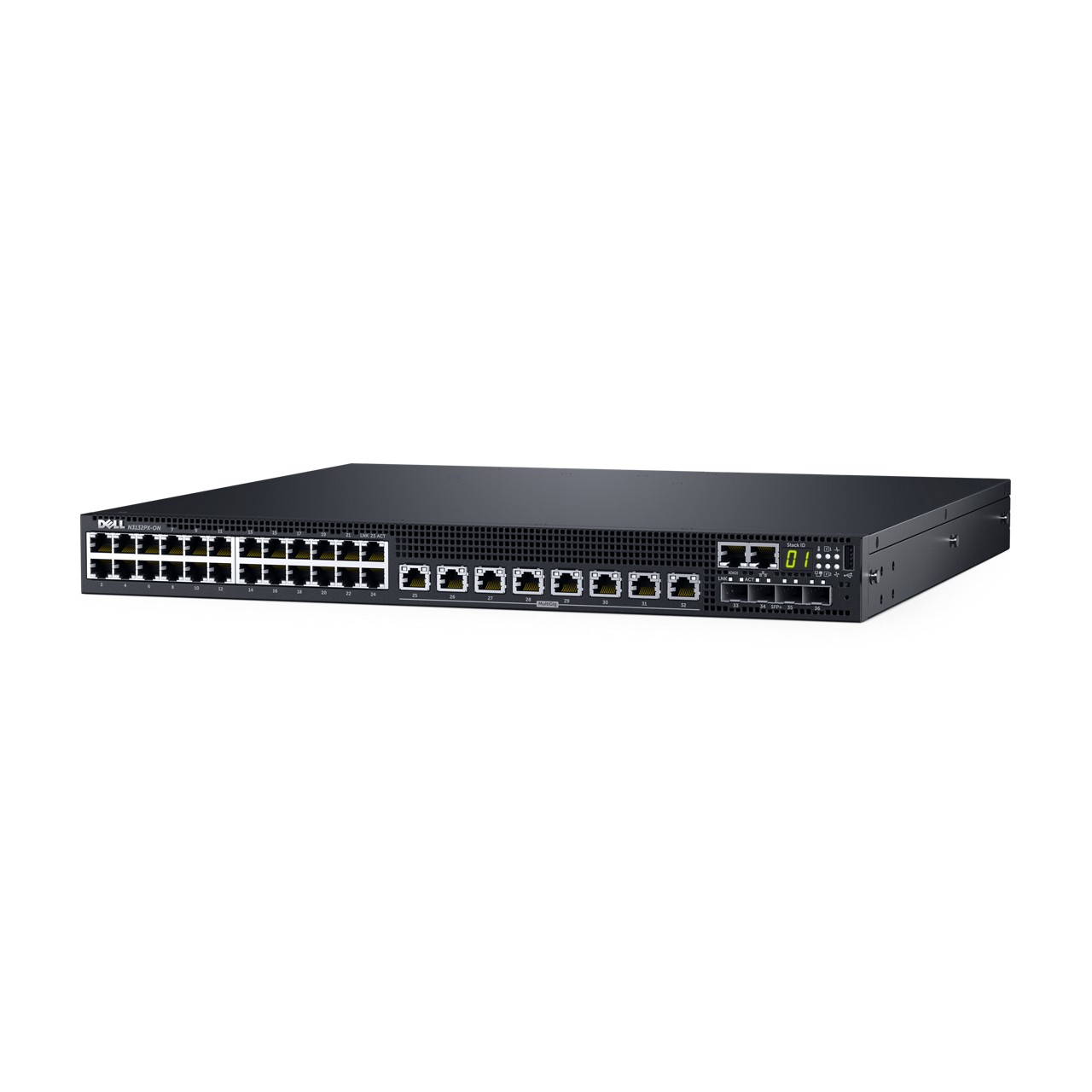

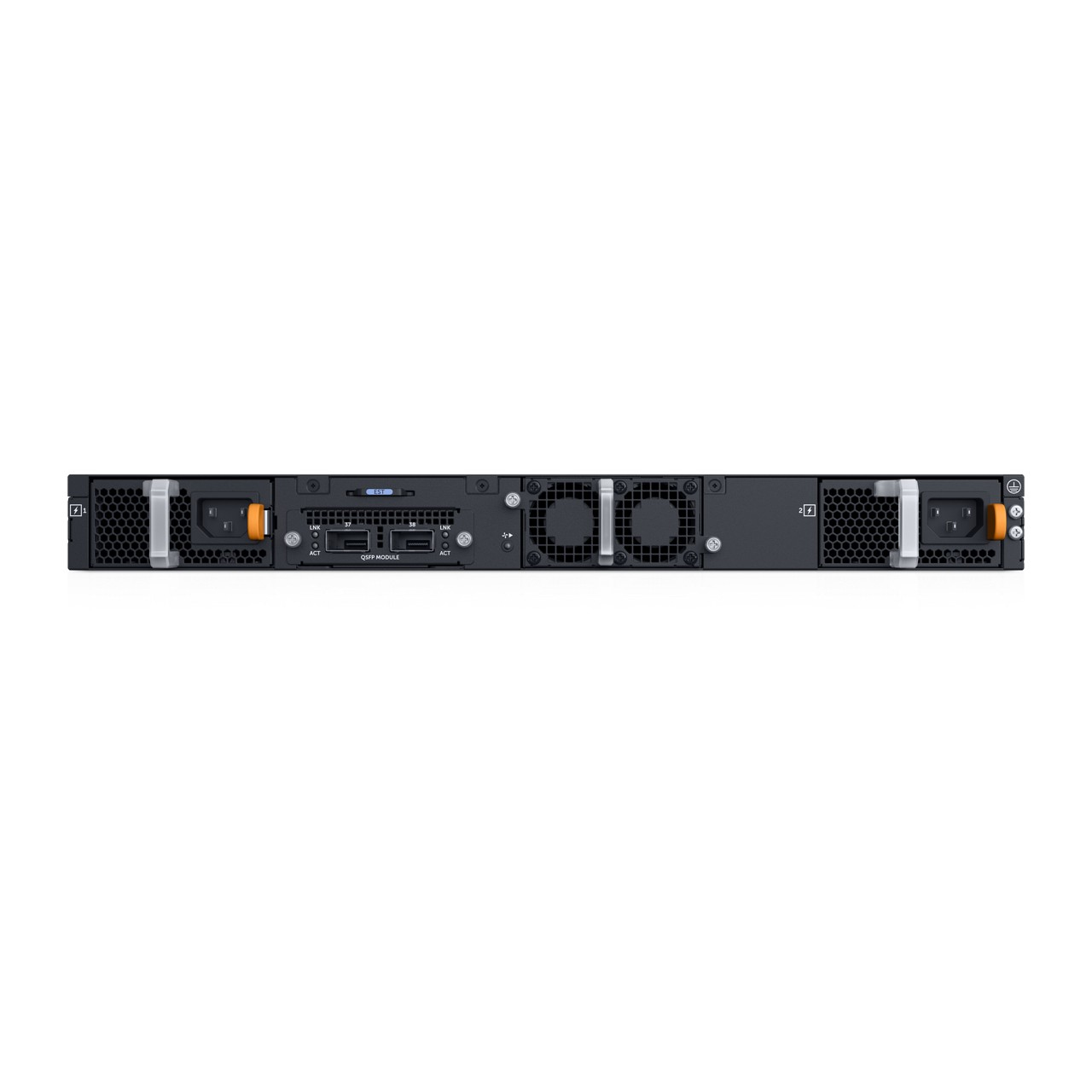

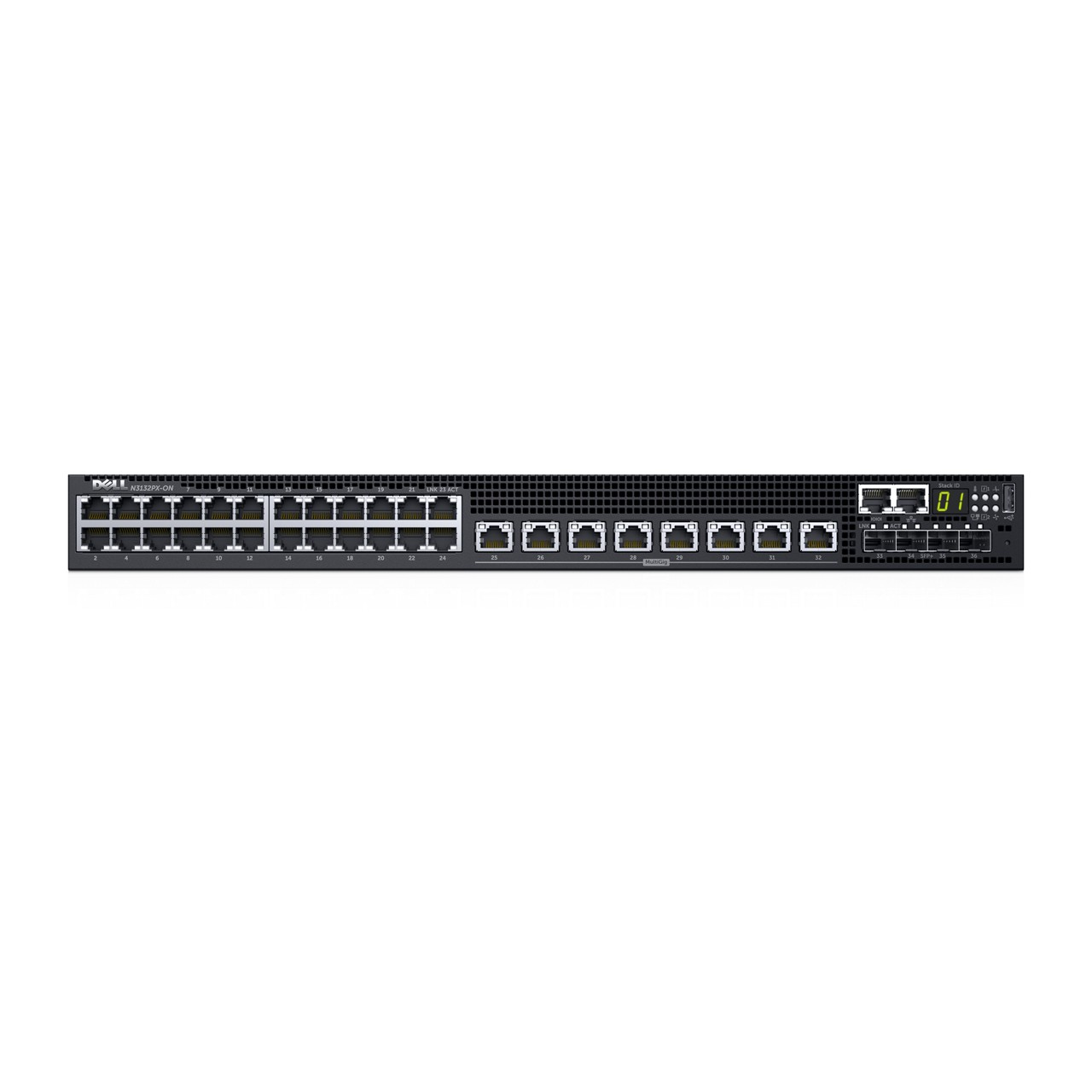

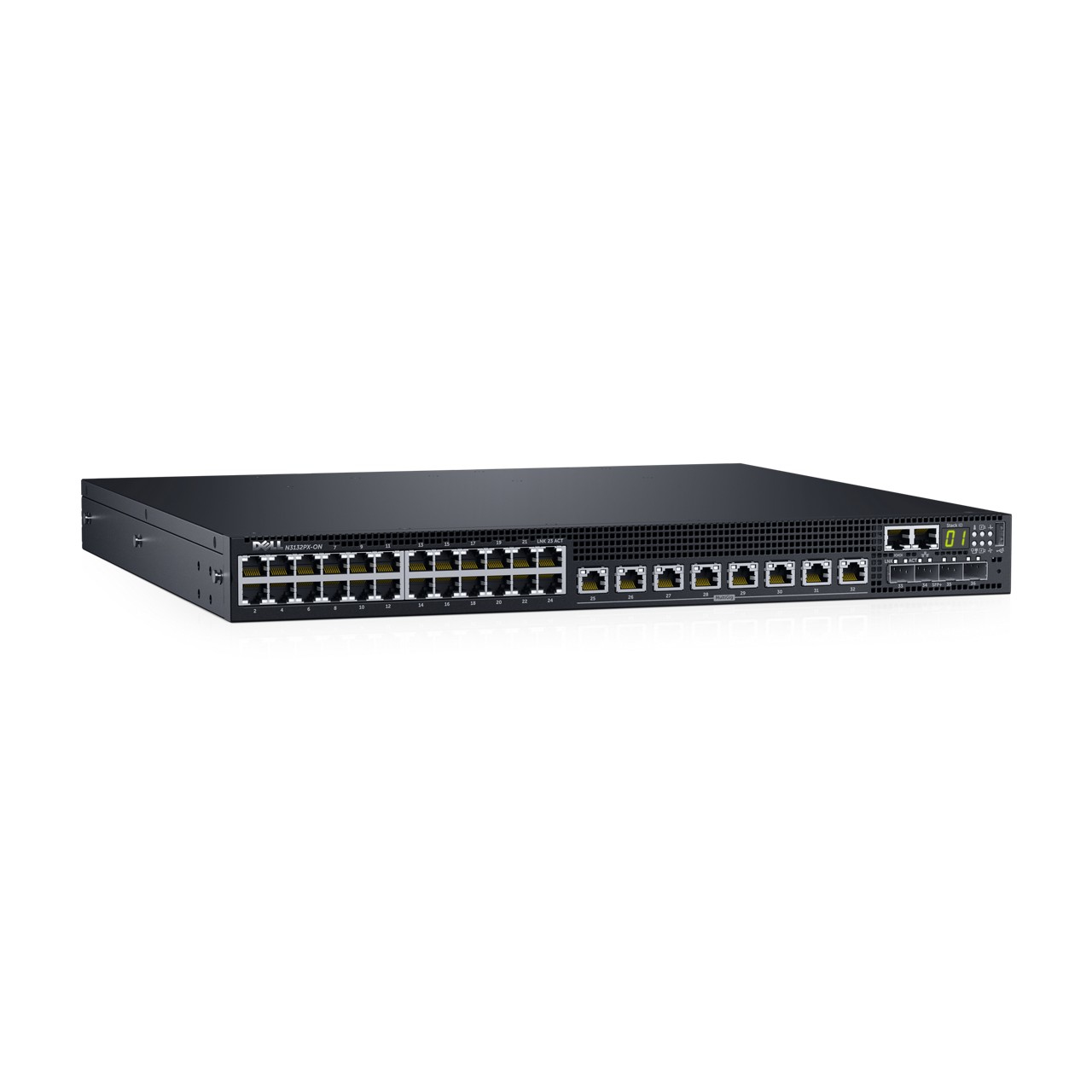

Dell N3132PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Dell N3132PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model N3132PX-ONPart no. 210-AGKXEAN 5397184011461

48 specifications
  • Memory2000 MB
  • Type1U
  • Weight7.12 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity32
See all specifications

Overview

Memory
2000 MB
Type
1U
Weight
7.12 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
32
Brand
Dell
Model
N3132PX-ON
Part numbers
210-AGKX, DNN3132PX
EAN / UPC
5397184011461
Also known as
DELL N3132PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

48 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity32
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity4
USB 2.0 ports quantity1

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3z
10G supportYes
Port mirroringYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
VLAN supportYes
Number of VLANs4094

Data transmission

MAC address table32000 entries
Switching capacity328 Gbit/s
Throughput428 Mpps
Store-and-forwardYes
Number of static routes1024
Packet buffer memory5 MB

Security

Access Control List (ACL)Yes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack

Performance

Internal memory2000 MB
Flash memory512 MB

Power

Number of power supply units1
Output power1100 W
Power consumption (max)2115 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port60 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 85%
Heat dissipation7216.68 BTU/h

Weight & dimensions

Width434 mm
Depth407 mm
Height43.5 mm
Weight7.12 kg

Packaging content

ManualYes
