Dell PowerConnect N3048EP L3 Gigabit Ethernet (10/100/1000) 1U Black
Model N3048EPPart no. 210-AOFMEAN 5397184219638
46 specifications
- Memory1024 MB
- Type1U
- Weight6.3 kg
- ColourBlack
- Switch layerL3
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 1024 MB
- Type
- 1U
- Weight
- 6.3 kg
- Colour
- Black
- Switch layer
- L3
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Dell
- Category
- Network Switch
- Model
- N3048EP
- Part number
- 210-AOFM
- EAN / UPC
- 5397184219638
- Also known as
- DELL PowerConnect N3048EP L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
46 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 260 Gbit/s |
| Throughput | 193 Mpps |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2/v3 |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|

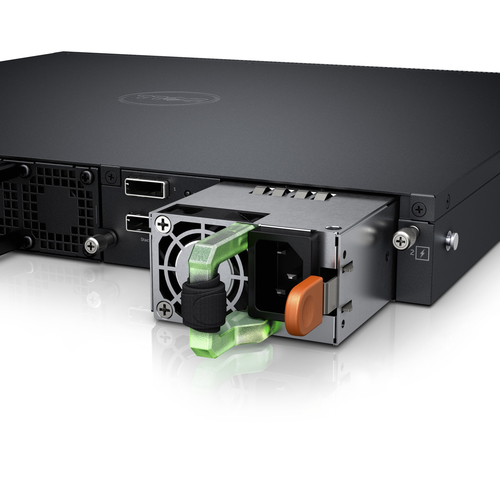

| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power consumption (typical) | 74.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | DNN3048EP |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 85% |
| Heat dissipation | 220.97 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 407 mm |
| Height | 43.5 mm |
| Weight | 6.3 kg |
