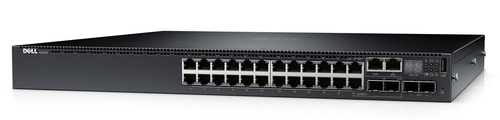

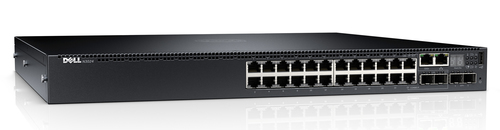

Dell N3024ET-ON Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Model N3024ET-ONPart no. 210-APXDEAN 5397184219591
50 specifications
- Memory1024 MB
- Type1U
- Weight6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 1024 MB
- Type
- 1U
- Weight
- 6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- N3024ET-ON
- Part number
- 210-APXD
- EAN / UPC
- 5397184219591
- Also known as
- DELL N3024ET-ON Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
50 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 212 Gbit/s |
| Throughput | 158 Mpps |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2/v3 |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power consumption (typical) | 67.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | DNN3024ET |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 85% |
| Heat dissipation | 204.6 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 407 mm |
| Height | 43.5 mm |
| Weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
