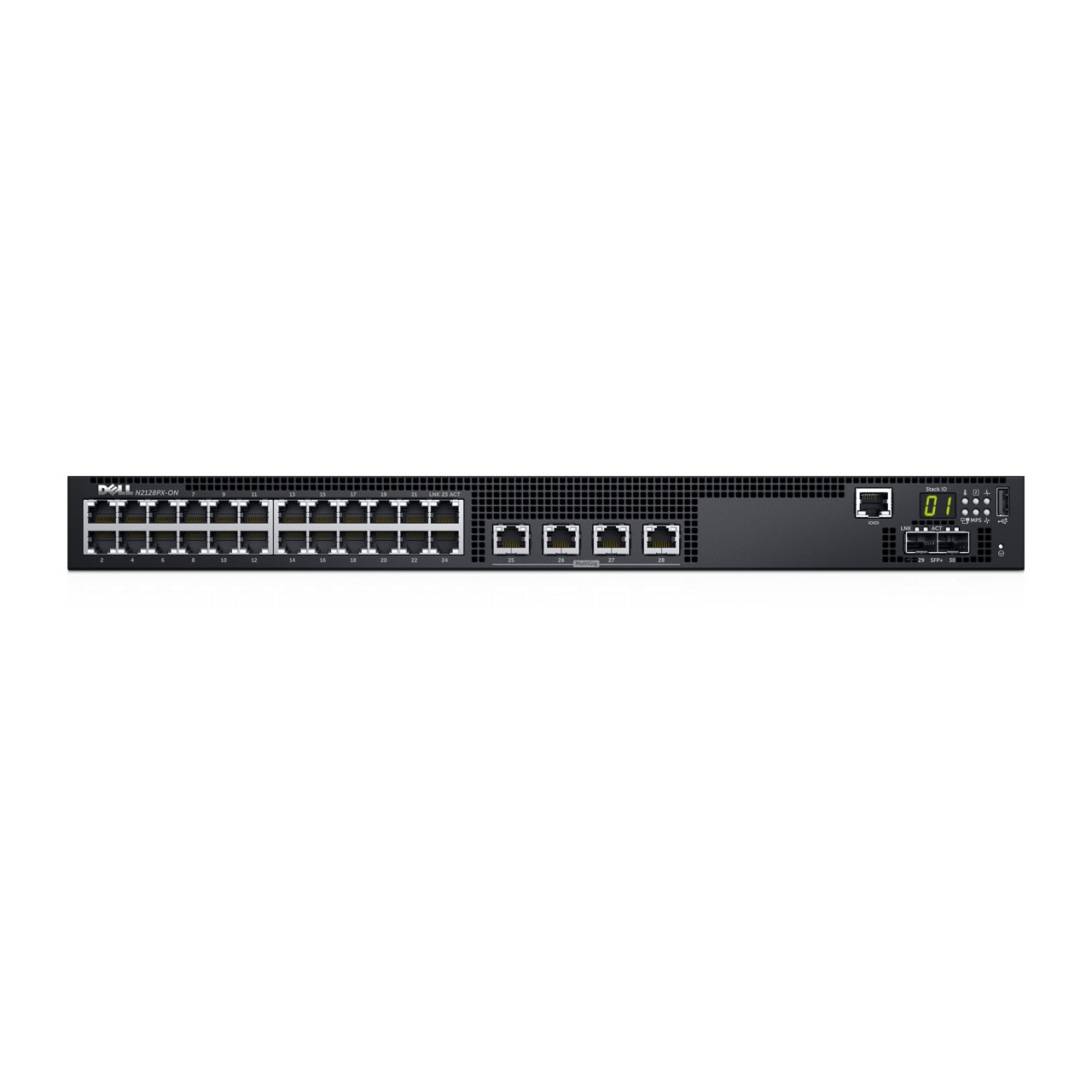

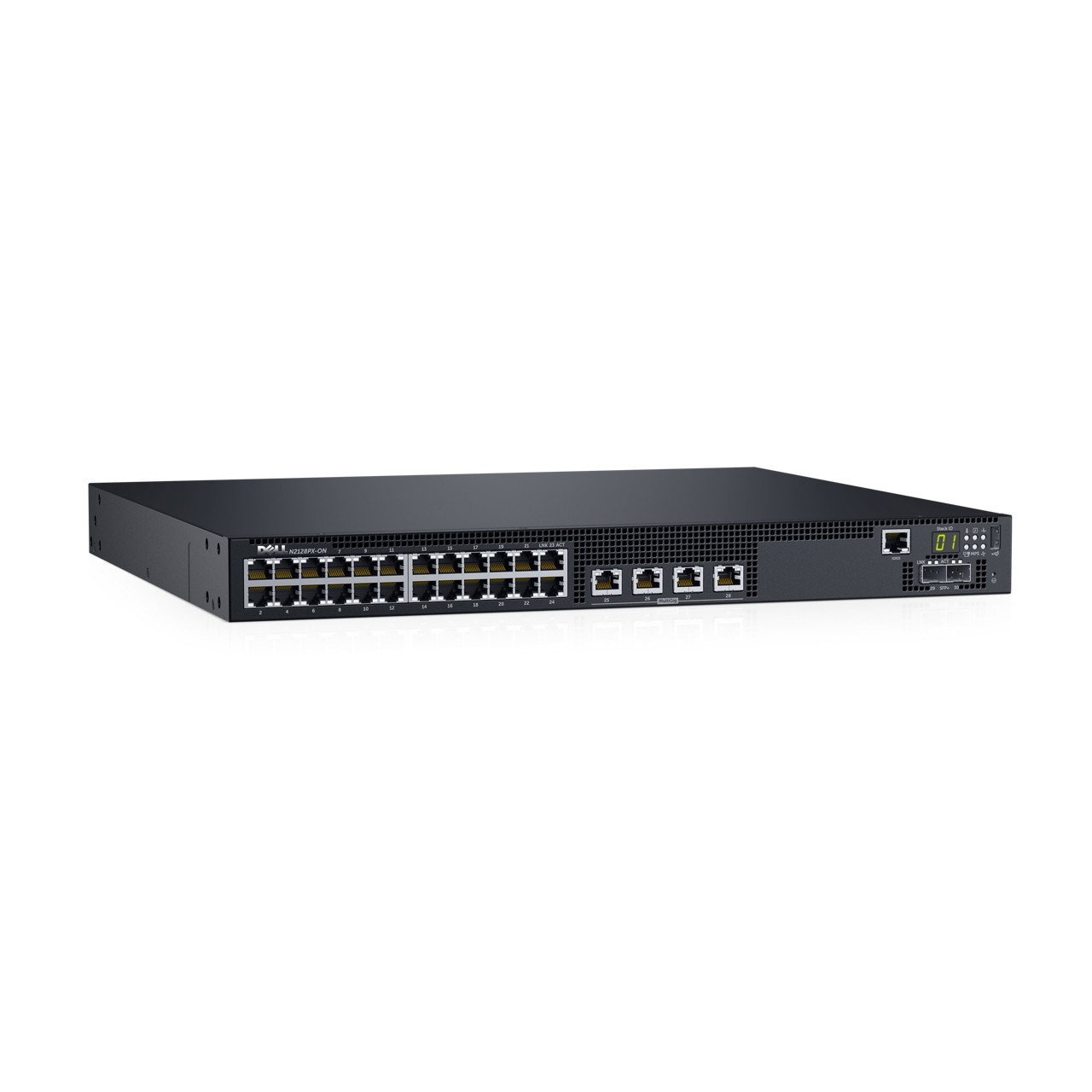

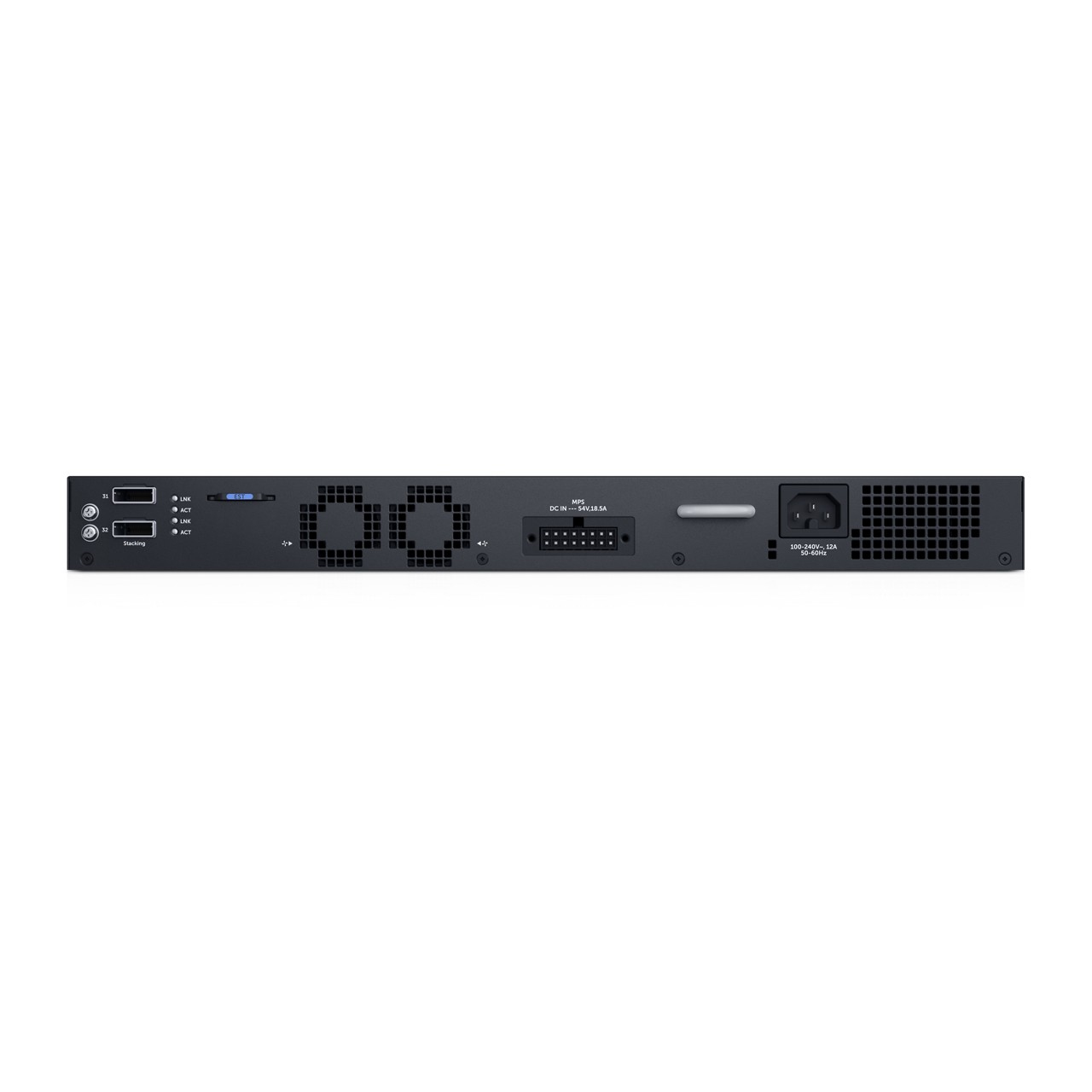

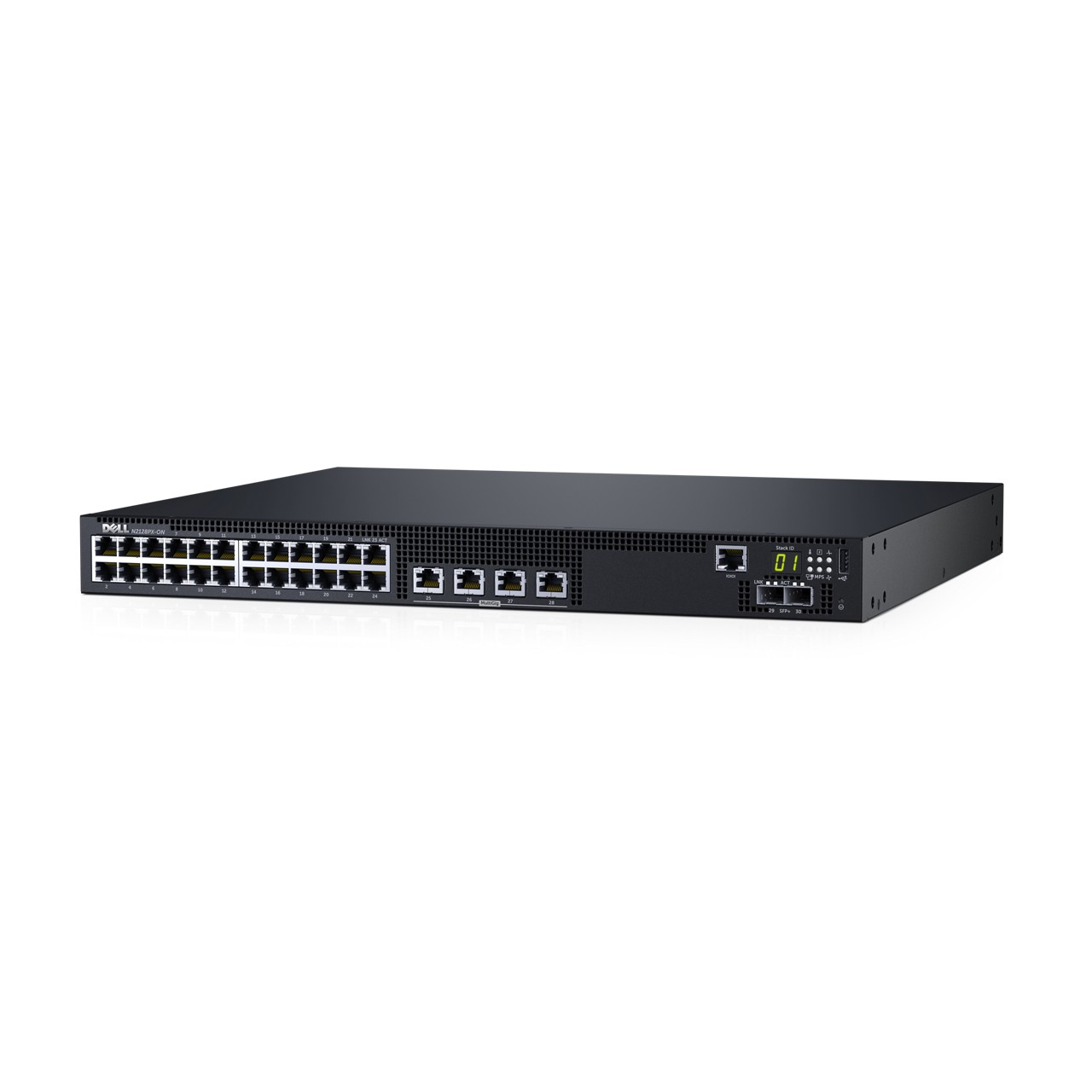

Dell N2128PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Dell N2128PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model N2128PX-ONPart no. 210-AISIEAN 884116284260

49 specifications
  • Memory2000 MB
  • Type1U
  • Weight6.83 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity28
See all specifications

Overview

Memory
2000 MB
Type
1U
Weight
6.83 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
28
Brand
Dell
Model
N2128PX-ON
Part numbers
210-AISI, 5C1J6, DNN2128PX
EAN / UPC
884116284260, 5397184011539, 884116248668
Also known as
DELL N2128PX-ON Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

49 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity28
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity2
USB 2.0 ports quantity1

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology1000BASE-T
Port mirroringYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
VLAN supportYes
Number of VLANs4094

Data transmission

MAC address table32000 entries
Switching capacity192 Gbit/s
Throughput256 Mpps
Number of static routes256
Packet buffer memory5 MB

Security

Access Control List (ACL)Yes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack

Performance

Internal memory2000 MB
Flash memory512 MB

Power

Output power1000 W
Power consumption (max)1039.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port60 W
Total Power over Ethernet (PoE) budget90.8 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 85%
Heat dissipation6069.8 BTU/h

Weight & dimensions

Width440 mm
Depth387 mm
Height43.2 mm
Weight6.83 kg

Packaging content

ManualYes
