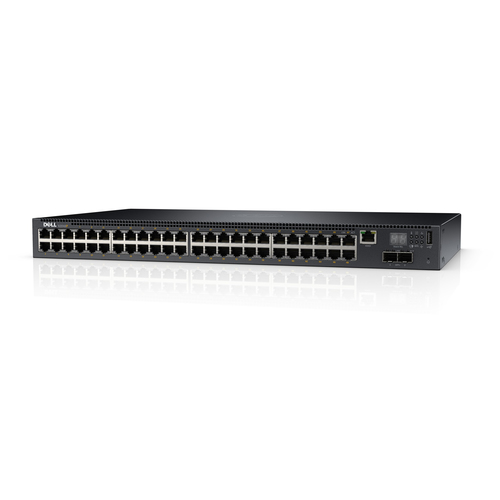

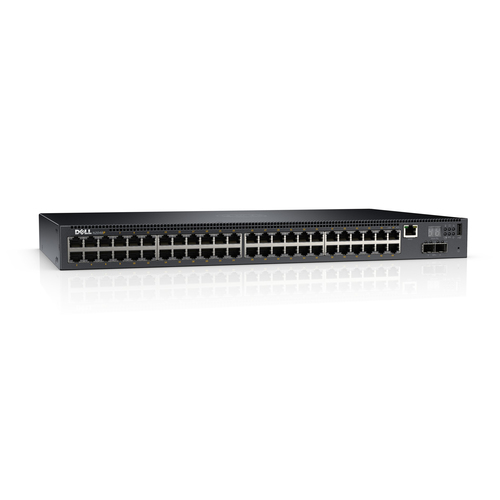

Dell N2048P + 5YNBD
Model N2048P + 5YNBDPart no. 210-ABNY-5YNBD
57 specifications
- Type1U
- Weight6.8 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 6.8 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- N2048P + 5YNBD
- Part number
- 210-ABNY-5YNBD
- Also known as
- DELL PowerConnect N2048P + 5YNBD Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | SMIv1/SMIv2, IP, TCP, UDP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 220 Gbit/s |
| Number of static routes | 256 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2 |
| Supported network protocols | IPv4, IPv6, HTTP/1.1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 12 |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Output power | 1000 W |
| Power consumption (max) | 1738 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 85% |
| Heat dissipation | 6069.8 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 387 mm |
| Height | 43.5 mm |
| Weight | 6.8 kg |
