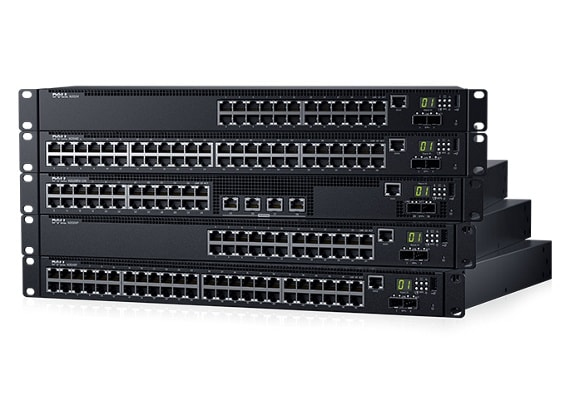

Dell PowerConnect N2024P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Dell PowerConnect N2024P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model N2024PPart no. DN_N2024P_LTDEAN 2000000609232

56 specifications

Type1U
Weight6.37 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes

See all specifications

Overview

Type: 1U
Weight: 6.37 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes

Brand: Dell
Category: Network Switch
Model: N2024P
Part numbers: DN_N2024P_LTD, DN_N2024PANV1, 210-ABNW, DNN2024P, DN_N2024P_1.2, DN_N2024PARV1
EAN / UPC: 2000000609232, 4053162963382, 5397063839414, 5742220432692 +1 more
Also known as: DELL PowerConnect N2024P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

56 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	SMIv1/SMIv2, IP, TCP, UDP

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	8192 entries
Switching capacity	172 Gbit/s
Number of static routes	256
Packet buffer memory	4 MB

Security

Specification	Value
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMPv1/v2
Supported network protocols	IPv4, IPv6, HTTP/1.1

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)

Performance

Specification	Value
Physical stacking (units)	12
Flash memory	256 MB

Power

Specification	Value
Number of power supply units	1
Output power	1000 W
Power consumption (typical)	913 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	257 mm
Height	43.5 mm
Weight	6.37 kg

Packaging content

Specification	Value
Cables included	AC
