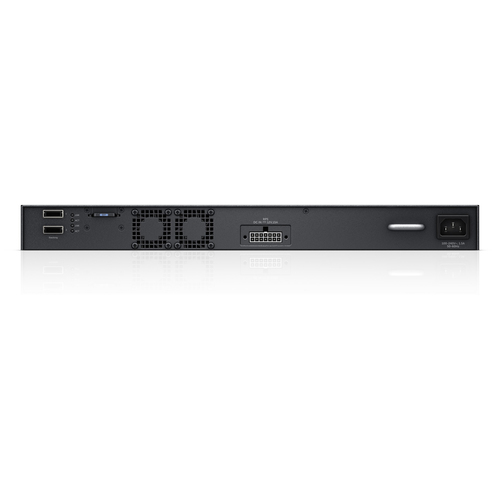

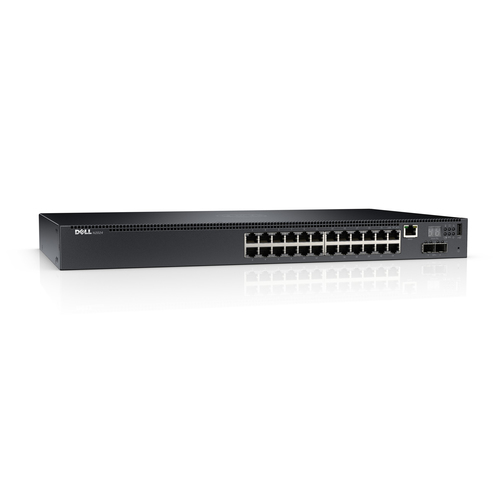

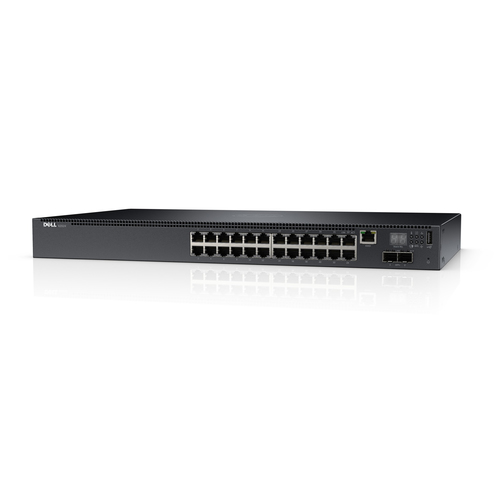

Dell N2024 + 5YNBD
Model N2024 + 5YNBDPart no. 210-ABNV-5YNBD
55 specifications
- Type1U
- Weight3.69 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 3.69 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- N2024 + 5YNBD
- Part number
- 210-ABNV-5YNBD
- Also known as
- DELL PowerConnect N2024 + 5YNBD Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | SMIv1/SMIv2, IP, TCP, UDP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 172 Gbit/s |
| Number of static routes | 256 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2 |
| Supported network protocols | IPv4, IPv6, HTTP/1.1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 12 |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Output power | 100 W |
| Power consumption (max) | 42.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 90% |
| Heat dissipation | 117.44 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.5 mm |
| Weight | 3.69 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
