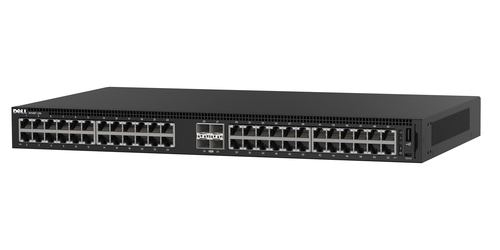

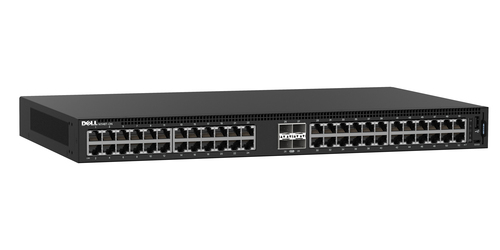

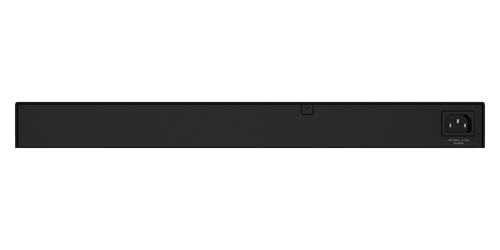

Dell N1148T Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model N1148TPart no. DNN1148TEAN 5397063904631
28 specifications
- Type1U
- Weight3.78 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Port mirroringYes
Overview
- Type
- 1U
- Weight
- 3.78 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Port mirroring
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- N1148T
- Part number
- DNN1148T
- EAN / UPC
- 5397063904631
- Also known as
- DELL N1148T Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
28 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 133 Mpps |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Output power | 60 W |
| Power consumption (max) | 30.18 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 102.98 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 254 mm |
| Height | 44.5 mm |
| Weight | 3.78 kg |
