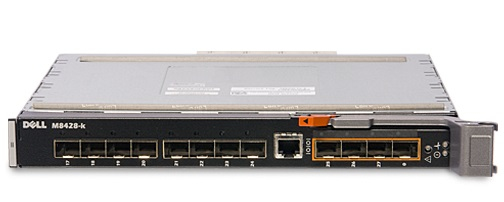

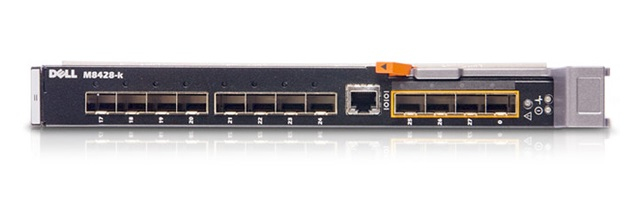

Dell PowerConnect M8428-k Managed
10G Ethernet (100/1000/10000) Grey
Model M8428-kPart no. 210-39035
28 specifications
- Weight2.1 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table32000 entries
Overview
- Weight
- 2.1 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 32000 entries
- Brand
- Dell
- Category
- Network Switch
- Model
- M8428-k
- Part numbers
- 210-39035, 210-39036, 210-39067
- Also known as
- DELL PowerConnect M8428-k Managed 10G Ethernet (100/1000/10000) Grey
Specifications
28 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 3583 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Latency (10 Gbps) | 600 µs |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SSH v2, SNMP v1/v2/v3, MS-CHAP |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 272.7 mm |
| Depth | 307.2 mm |
| Height | 32.5 mm |
| Weight | 2.1 kg |
What people say
Reviews & ratings
Dell PowerConnect M8428-k Managed
No reviews yet
Be the first to tell others how Dell PowerConnect M8428-k Managed works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerConnect M8428-k Managed
All network switch comparisons- Dell PowerConnect M8428-k Managed vsDell PowerConnect M6348 Managed L3 Gigabit Ethernet (10/100/1000) BlackCompare specs

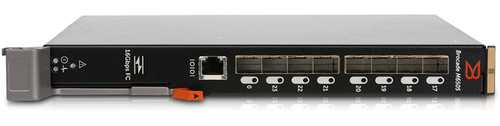

- Dell PowerConnect M8428-k Managed vsDell Brocade M6505Compare specs
- Dell PowerConnect M8428-k Managed vsDell N-Series N4064F Managed L3 1U BlackCompare specs
- Dell PowerConnect M8428-k Managed vsDell N-Series N4032F Managed L3 1U BlackCompare specs
- Dell PowerConnect M8428-k Managed vsTP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP SlotsCompare specs
- Dell PowerConnect M8428-k Managed vsD-Link DGS-1210-28P/ME network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1UCompare specs

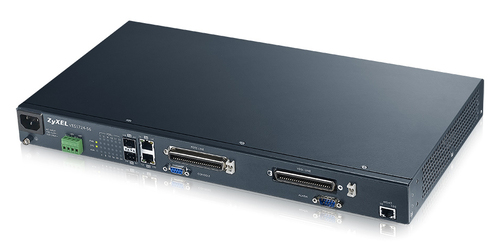

- Dell PowerConnect M8428-k Managed vsZyxel VES1724-56B2-EU01V1F network switch Managed 1U BlackCompare specs
