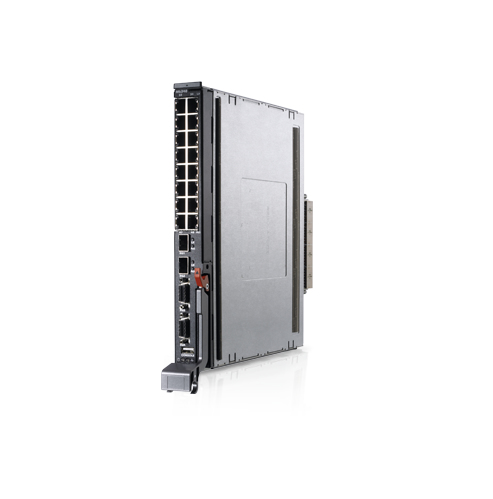

Dell PowerConnect M6348 Managed L3 Gigabit Ethernet (10/100/1000) Black

Dell PowerConnect M6348 Managed L3 Gigabit Ethernet (10/100/1000) Black

Model M6348Part no. 210-41297EAN 5397063839834

49 specifications

Memory512 MB
Weight2.7 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
Copper ethernet cabling technology1000BASE-T

See all specifications

Overview

Memory: 512 MB
Weight: 2.7 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
Copper ethernet cabling technology: 1000BASE-T

Brand: Dell
Category: Network Switch
Model: M6348
Part numbers: 210-41297, 210-41298, 210-41303, 210-41319, 210-41316, 210-41291
EAN / UPC: 5397063839834, 5397063839841
Also known as: DELL PowerConnect M6348 Managed L3 Gigabit Ethernet (10/100/1000) Black

Specifications

49 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	RFC 768, 783, 791, 792, 793, 826, 854, 855, 894, 896, 951, 1027, 1112, 1155, 1157, 1212, 1213, 1215, 1256, 1286, 1321, 1442, 1451, 1492, 1493, 1519, 1534, 1573, 1643, 1757, 1765, 1812,1867, 1901,1907, 1908, 1981, 2011, 2012, 2013, 2030, 2031, 2032, 2082, 2131, 2233, 2236, 2328, 2373, 2453, 2460, 246

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	2
CX4 ports quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	1024

Data transmission

Specification	Value
MAC address table	32000 entries
Switching capacity	184 Gbit/s
Throughput	160 Mpps
Number of queues	8

Security

Specification	Value
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	1024

Protocols

Specification	Value
Management protocols	SSH, Telnet, SSL, SNMPv1, SNMP v2c, SNMPv3
Switching protocols	IEEE 802.3ad

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Black

Performance

Specification	Value
Internal memory	512 MB
Flash memory	64 MB
Firmware upgradeable	Yes

Power

Specification	Value
Redundant power supply (RPS) support	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%

Weight & dimensions

Specification	Value
Width	267 mm
Depth	258 mm
Height	31 mm
Weight	2.7 kg

Packaging content

Specification	Value
Manual	Yes
