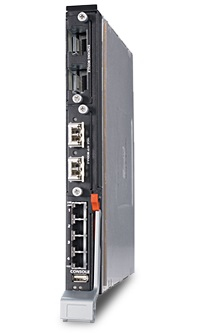

Dell PowerConnect M6220 Managed L3 Gigabit Ethernet (10/100/1000) Black
Model M6220Part no. 210-41290EAN 5397063839810
38 specifications
- Weight2.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Dell
- Category
- Network Switch
- Model
- M6220
- Part numbers
- 210-41290, 210-41301, 210-41302, 210-41314, 210-41295, 210-41318
- EAN / UPC
- 5397063839810, 5397063839827, 5711045916885
- Also known as
- DELL PowerConnect M6220 Managed L3 Gigabit Ethernet (10/100/1000) Black
Specifications
38 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1, SNMP v2c, SNMPv3 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Compatible products | PowerEdge M1000e |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 267 mm |
| Depth | 258 mm |
| Height | 31 mm |
| Weight | 2.7 kg |
