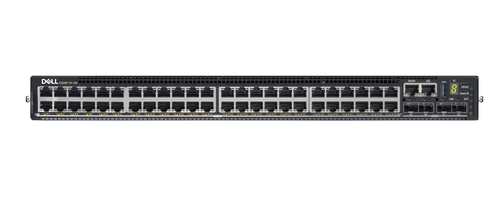

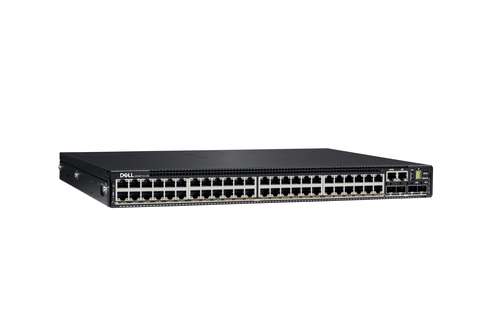

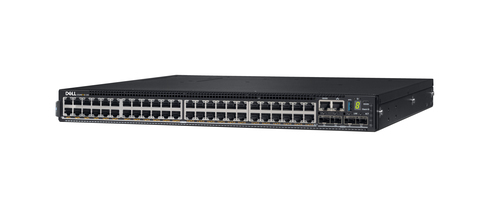

E3248PXE-ON Managed L2/L3
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Model E3248PXE-ONPart no. 210-BFGO-P327
62 specifications
- Type1U
- Weight7.98 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 7.98 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- E3248PXE-ON
- Part numbers
- 210-BFGO-P327, 210-BMYB-VNBV
- Also known as
- DELL E3248PXE-ON Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Specifications
62 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Network virtualization technologies | Multi-Chassis Link Aggregation (MLAG) |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Private VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 1560 Gbit/s |
| Forwarding rate | 2167 Mpps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Authentication | MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Security algorithms | SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | BGP, OSPFv2, OSPFv3, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Telnet | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 40 - 60 V |
| Power consumption (max) | 4869 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 554 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 1111.4 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 7.98 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
