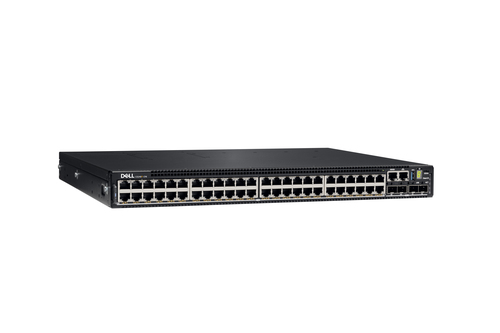

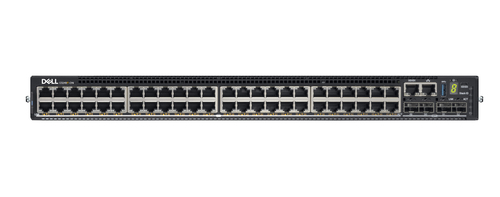

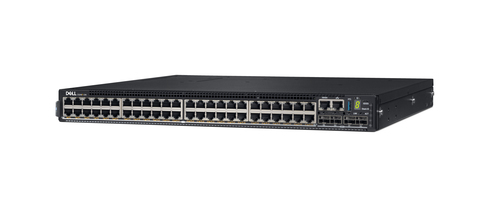

E3248P Managed L2/L3
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Model E3248PPart no. E3248P-FY26Q2EAN 884116485780
60 specifications
- Type1U
- Weight7.57 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 802.3at
Overview
- Type
- 1U
- Weight
- 7.57 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 802.3at
- Brand
- Dell
- Category
- Network Switch
- Model
- E3248P
- Part numbers
- E3248P-FY26Q2, E3248P264, E3248P271
- EAN / UPC
- 884116485780, 884116693666
- Also known as
- DELL E3248P Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Specifications
60 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 2 |
| Power cables quantity | 2 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3at |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Private VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 576 Gbit/s |
| Forwarding rate | 800 Mpps |
| Packet buffer memory | 8 MB |
Security
| Specification | Value |
|---|---|
| Authentication | MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Security algorithms | SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | BGP, OSPFv2, OSPFv3, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 40 - 60 V |
| Power consumption (max) | 1683 W |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 6573 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 7.57 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
