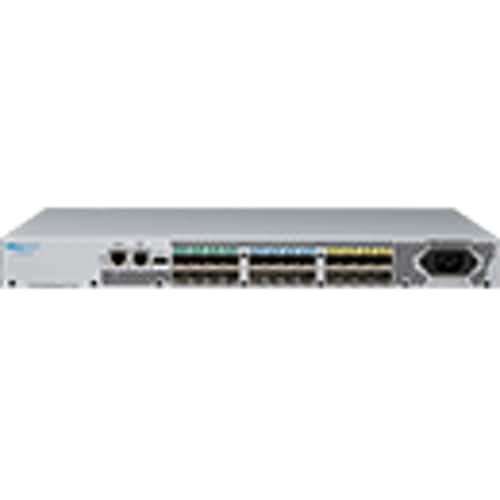

DS-6610B-L Managed 1U Grey
Model DS-6610B-LPart no. 210-BDDOEAN 884116486589
27 specifications
- Type1U
- Weight5.76 kg
- ColourGrey
- Switch typeManaged
- SFP module slots quantity16
- Authentication typeRADIUS, TACACS+
Overview
- Type
- 1U
- Weight
- 5.76 kg
- Colour
- Grey
- Switch type
- Managed
- SFP module slots quantity
- 16
- Authentication type
- RADIUS, TACACS+
- Brand
- Dell
- Category
- Network Switch
- Model
- DS-6610B-L
- Part numbers
- 210-BDDO, 210-BDDQ | 407-BCQW, 210-BDDR | 407-BCQX, DS6610BL-24P-16G-FY25Q2, DS6610BL-24P-32G-FY25Q2, DS6610BL-8P-16G-FY25Q2 +12 more
- EAN / UPC
- 884116486589, 884116466987, 884116466994, 884116467045 +4 more
- Also known as
- DELL DS-6610B-L Managed 1U Grey
Specifications
27 specifications in 8 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 16 |
| Fiber optic connector | SFP |
Security
| Specification | Value |
|---|---|
| Authentication type | RADIUS, TACACS+ |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, IPSec |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB) |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Airflow direction | Back-to-front airflow |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Input current | 2.2 A |
| Power consumption (typical) | 77 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 428.8 mm |
| Depth | 306 mm |
| Height | 42.9 mm |
| Weight | 5.76 kg |
