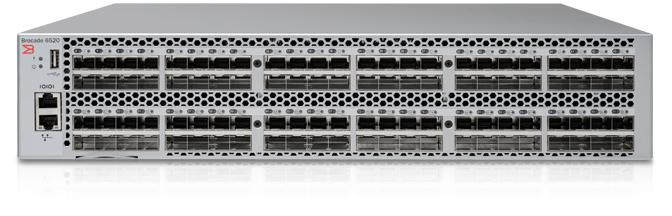

Dell Brocade 6520
Model Brocade 6520Part no. 210-AANW
27 specifications
- Weight16.9 kg
- ColourSilver
- Switch typeManaged
- Fiber ports quantity48
- 10G supportNo
- Switching capacity768 Gbit/s
Overview
- Weight
- 16.9 kg
- Colour
- Silver
- Switch type
- Managed
- Fiber ports quantity
- 48
- 10G support
- No
- Switching capacity
- 768 Gbit/s
- Brand
- Dell
- Category
- Network Switch
- Model
- Brocade 6520
- Part numbers
- 210-AANW, 210-AANY, 210-AAOC, 210-AAOD
- Also known as
- DELL PowerConnect Brocade 6520 Managed Silver
Specifications
27 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Fiber ports quantity | 48 |
| Fiber optic connector | LC, SFP+ |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 768 Gbit/s |
Security
| Specification | Value |
|---|---|
| SSH/SSL support | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SSH-2, SSL/TLS |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, SNMP v1/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Silver |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 85 - 264 V |
| AC input frequency | 47/63 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 429.2 mm |
| Depth | 609.7 mm |
| Height | 86.7 mm |
| Weight | 16.9 kg |
