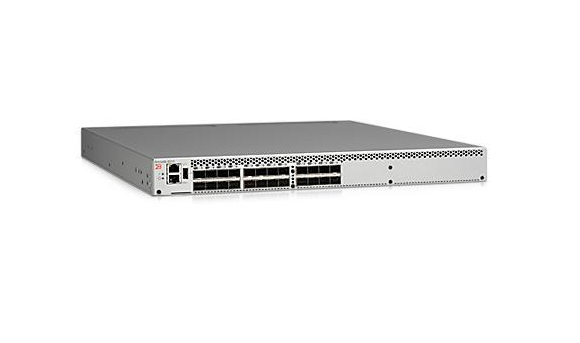

Dell Brocade 6505
Model Brocade 6505Part no. 210-40281
36 specifications
- Type1U
- Weight9.16 kg
- ColourSilver
- Switch typeManaged
- Fiber optic connectorFC
- Networking standardsIEEE 802.3
Overview
- Type
- 1U
- Weight
- 9.16 kg
- Colour
- Silver
- Switch type
- Managed
- Fiber optic connector
- FC
- Networking standards
- IEEE 802.3
- Brand
- Dell
- Category
- Network Switch
- Model
- Brocade 6505
- Part numbers
- 210-40281, 210-40311, 210-40310
- Also known as
- DELL PowerConnect Brocade 6505 Managed 1U Silver
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Fiber optic connector | FC |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 384 Gbit/s |
Security
| Specification | Value |
|---|---|
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, SNMP v1/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 2 |
| AC input voltage | 85 - 264 V |
| AC input frequency | 47/63 Hz |
| Input current | 2.5 A |
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 338 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 443 mm |
| Height | 43 mm |
| Weight | 9.16 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
