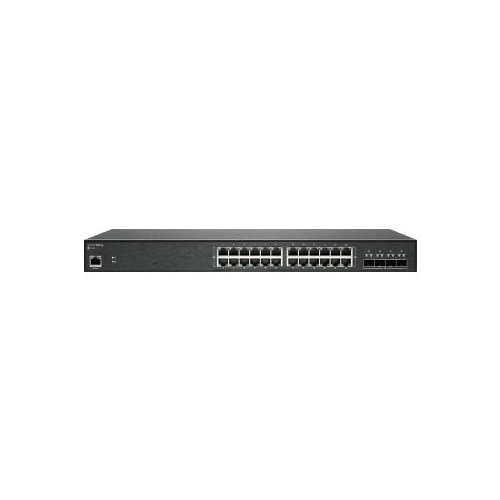

AB560349 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model AB560349
49 specifications
- Memory512 MB
- Type1U
- Weight1.8 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 512 MB
- Type
- 1U
- Weight
- 1.8 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- AB560349
- Part number
- AB560349
- Also known as
- DELL AB560349 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| MIB support | MIB-II |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Mean time between failures (MTBF) | 1273866 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 120 - 230 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 44 mm |
| Height | 200 mm |
| Weight | 1.8 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, C-TICK, CB, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KCC, Low Voltage Directive (LVD), REACH, RoHS, UL, VCCI, WEEE, cUL |
| Certification | TUV GS, ANATEL, MSIP |
