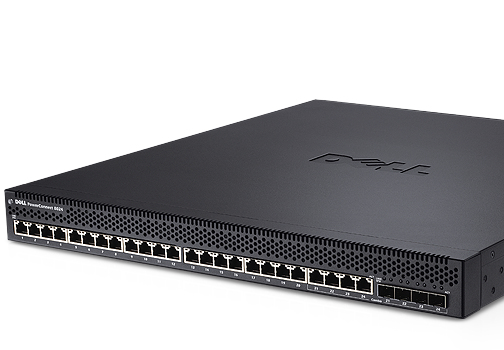

Dell PowerConnect 8024 Managed L3 Black

Dell PowerConnect 8024 Managed L3 Black

Model 8024Part no. PC8024

54 specifications
  • Speed10 Gbit/s
  • ConnectivityWired
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportYes
See all specifications

Overview

Speed
10 Gbit/s
Connectivity
Wired
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
Yes
Brand
Dell
Model
8024
Part number
PC8024
Also known as
DELL PowerConnect 8024 Managed L3 Black

Specifications

54 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
MIB supportRIPv1/2, OSPFv1/2/3, CIDR, ICMP, IRDP, VRRP, ARP, DVMRP

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
SFP/SFP+ slots quantity4
SFP+ module slots quantity24
Fiber optic connectorSFP+

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G supportYes
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
Number of VLANs1000

Data transmission

MAC address table32000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity480 Gbit/s
Number of queues8
Maximum data transfer rate10 Gbit/s
Jumbo frames supportYes
Packet buffer memory16 MB

Security

DHCP featuresDHCP server, DHCP client
IGMP snoopingYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS, SSH, SSL/TLS

Multicast features

Multicast supportYes

Protocols

Management protocolsIGMPv2, SNMPv1/2/3, MLDv1/2
Switching protocolsLACP
Data link protocolsSSH, LLDP
Supported network protocolsIPv4, IPv6, HTTP, TCP/UDP, DSCP

Design

Rack mountingNo
StackableNo
Product colourBlack

Power

Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz
Input current24.3 A
Power consumption (typical)237.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Connectivity technologyWired
Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking featuresGigabit Ethernet
Packet transfer speed357.14 mpps

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)32 - 104 °F
