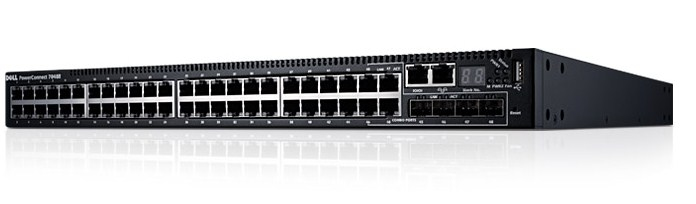

Dell PowerConnect 7048R-RA Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Dell PowerConnect 7048R-RA Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Model 7048R-RAPart no. 210-34482

55 specifications
  • Memory1024 MB
  • Type1U
  • Weight9.75 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
See all specifications

Overview

Memory
1024 MB
Type
1U
Weight
9.75 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Brand
Dell
Model
7048R-RA
Part number
210-34482
Also known as
DELL PowerConnect 7048R-RA Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Specifications

55 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity0
SFP module slots quantity4
USB 2.0 ports quantity1

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
IP routingYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs1000

Data transmission

MAC address table32000 entries
Switching capacity224 Gbit/s
Throughput160 Mpps
Store-and-forwardYes
Packet buffer memory4 MB

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
MAC address filteringYes
Security algorithms802.1x RADIUS, HTTPS, SSH, SSL/TLS

Multicast features

Multicast supportYes
Number of multicast groups filtered256

Protocols

Management protocolsIGMP v1/v2/v3, SNMP v1/v2c/v3, SMIv1/SMIv2
Supported network protocolsiPv4, IPv6, Telnet, UDP, TFTP, ICMP, IP, MDA, TFTP v2, Syslog

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsYes

Performance

Internal memory1024 MB
Flash memory64 MB

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)930 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Width440 mm
Depth460 mm
Height44 mm
Weight9.75 kg

Packaging content

Quick start guideYes
ManualYes
User guideYes
