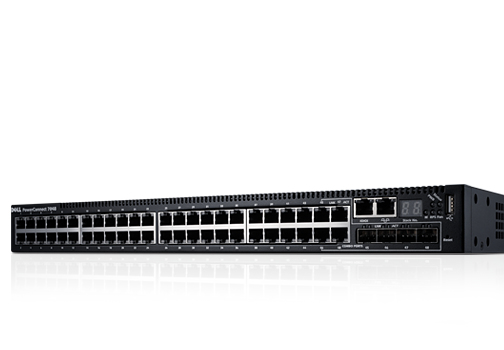

Dell PowerConnect 7048 Managed L3 1U Black
Model 7048Part no. PCT7048
50 specifications
- Memory1024 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight6.77 kg
- ColourBlack
Overview
- Memory
- 1024 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 6.77 kg
- Colour
- Black
- Brand
- Dell
- Category
- Network Switch
- Model
- 7048
- Part numbers
- PCT7048, PCT7048P, 210-34480
- Also known as
- DELL PowerConnect 7048 Managed L3 1U Black
Specifications
50 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | MIB II, SMIv2, SNMPv2, TACACS+, MIB, RMON |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 50 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 224 Gbit/s |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SMI v1, SNMP, Telnet, SMI v2, TFTP, IP, ICMP, TCP, BOOTP, DHCP |
| Supported network protocols | IGMPv2, GARP, GVRP, GMP, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Cabling technology | Gigabit Ethernet |
| Packet transfer speed | 160 Mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 6.77 kg |
What people say
Reviews & ratings
Dell PowerConnect 7048 Managed L3 1U Black
No reviews yet
Be the first to tell others how Dell PowerConnect 7048 Managed L3 1U Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerConnect 7048 Managed L3 1U Black
All network switch comparisons- Dell PowerConnect 7048 Managed L3 1U Black vsDell PowerConnect 7024P Managed L3 Power over Ethernet (PoE) 1U BlackCompare specs

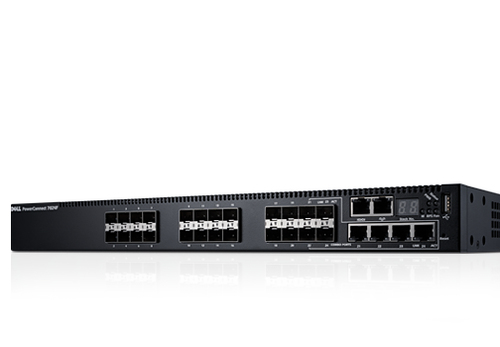

- Dell PowerConnect 7048 Managed L3 1U Black vsDell PowerConnect 7024F Managed L3 1U BlackCompare specs
