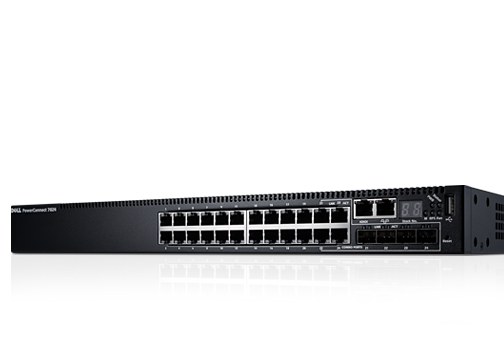

Dell PowerConnect 7024 Managed L3 Power over Ethernet (PoE) 1U Black
Model 7024Part no. PCT7024
49 specifications
- Memory1024 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight6.35 kg
- ColourBlack
Overview
- Memory
- 1024 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 6.35 kg
- Colour
- Black
- Brand
- Dell
- Category
- Network Switch
- Model
- 7024
- Part numbers
- PCT7024, 210-34485
- Also known as
- DELL PowerConnect 7024 Managed L3 Power over Ethernet (PoE) 1U Black
Specifications
49 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | MIB II, SMIv2, SNMPv2, TACACS+, MIB, RMON |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 176 Gbit/s |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SMI v1, SNMP, Telnet, SMI v2, TFTP, IP, ICMP, TCP, BOOTP, DHCP |
| Supported network protocols | IGMPv2, GARP, GVRP, GMP, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Cabling technology | Gigabit Ethernet |
| Packet transfer speed | 125 Mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 6.35 kg |
