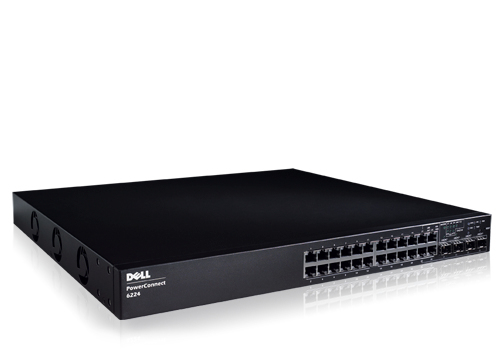

Dell PowerConnect 6224 Managed L3 1U Black
Model 6224Part no. PC6224
52 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight5.54 kg
- ColourBlack
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 5.54 kg
- Colour
- Black
- Brand
- Dell
- Category
- Network Switch
- Model
- 6224
- Part numbers
- PC6224, 210-17312
- Also known as
- DELL PowerConnect 6224 Managed L3 1U Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 136 Gbit/s |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv2, SNMPv1/v2c/v3 |
| Supported network protocols | Telnet, RIPv1/v2, VRRP, OSPFv1/v2/v3, CIDR, ICMP, IRDP, VRRP, ARP, DVMRP, TCP/UDP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Cable management | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Cabling technology | Gigabit Ethernet |
| Packet transfer speed | 95 mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 387 mm |
| Height | 43.2 mm |
| Weight | 5.54 kg |
