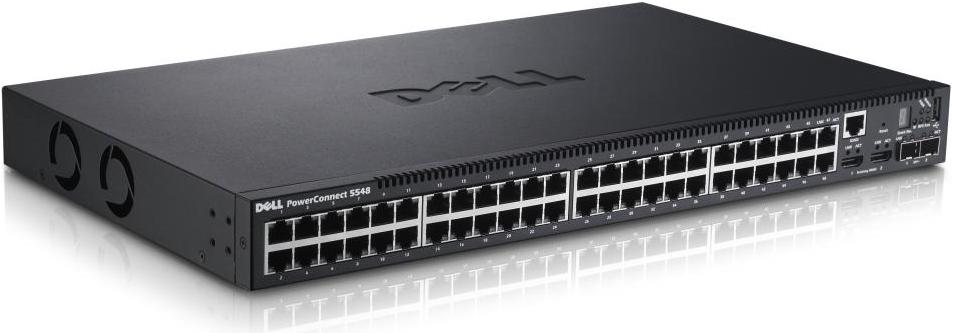

Dell PowerConnect 5548 Managed L2 1U Black
Model 5548Part no. 210-34476
48 specifications
- Memory256 MB
- Speed10 Gbit/s
- ConnectivityWired
- Type1U
- Weight3.33 kg
- ColourBlack
Overview
- Memory
- 256 MB
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3.33 kg
- Colour
- Black
- Brand
- Dell
- Category
- Network Switch
- Model
- 5548
- Part numbers
- 210-34476, 210-34476-1P, 210-34476-1P2M, 210-34476-1P4H, 210-34476-1P4M, 210-34476-1P8M +22 more
- Also known as
- DELL PowerConnect 5548 Managed L2 1U Black
Specifications
48 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP/SFP+ slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| HDMI stacking ports | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 176 Gbit/s |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, HTTP, HTTPS/SSL, SSH and SNMP RADIUS, TACACS+ |
| Supported network protocols | IGMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 255 x 432 mm |
| Connectivity technology | Wired |
| Bandwidth | 40 Gbit/s |
| Networking features | Gigabit Ethernet, Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.33 kg |
What people say
Reviews & ratings
Dell PowerConnect 5548 Managed L2 1U Black
No reviews yet
Be the first to tell others how Dell PowerConnect 5548 Managed L2 1U Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerConnect 5548 Managed L2 1U Black
All network switch comparisons- Dell PowerConnect 5548 Managed L2 1U Black vsDell PowerConnect 6224 Managed L3 1U BlackCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsDell PowerConnect 7048R Managed L3 1U BlackCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsDell PowerConnect 6224F Managed L3 1U BlackCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsDell PowerConnect 6248P Managed L3 Power over Ethernet (PoE) 1U BlackCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsLevelOne 52-Port L2 Plus Managed Gigabit Ethernet Switch, 44 Ports RJ45 and 4 Ports RJ45/SFP Combo Gigabit Ethernet, 4 Ports SFP+ 10-GigabitCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsLevelOne 28-Port L2 Managed Gigabit PoE Switch, 802.3at/af PoE, 4 x SFP/RJ45 ComboCompare specs
- Dell PowerConnect 5548 Managed L2 1U Black vsTP-Link JetStream 16-Port Gigabit Smart Network Switch with 2 Combo SFP SlotsCompare specs

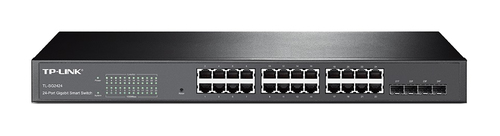

- Dell PowerConnect 5548 Managed L2 1U Black vsTP-Link TL-SG2424 network switch Managed BlackCompare specs
