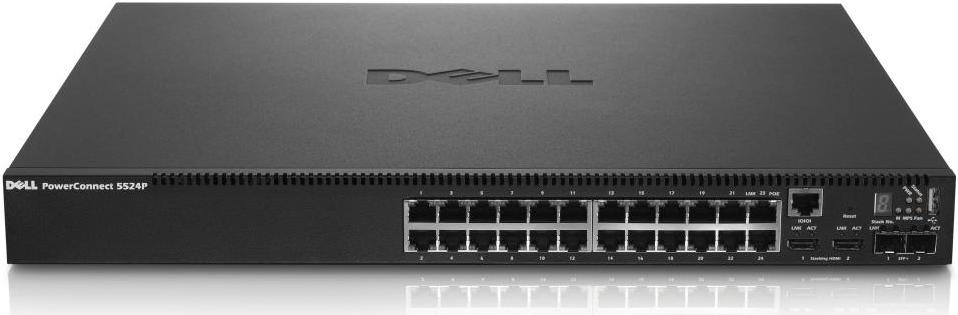

Dell PowerConnect 5524P Managed L2 1U Black
Model 5524PPart no. 210-34475-1PEAN 5397063839803
40 specifications
- Speed10 Gbit/s
- ConnectivityWired
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 10 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- 5524P
- Part numbers
- 210-34475-1P, 210-34475-1P2M, 210-34475-1P4H, 210-34475-1P4M, 210-34475-1P8M, 210-34475-2P +20 more
- EAN / UPC
- 5397063839803
- Also known as
- DELL PowerConnect 5524P Managed L2 1U Black
Specifications
40 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 128 Gbit/s |
| Maximum data transfer rate | 10 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, HTTP, HTTPS/SSL, SSH and SNMP RADIUS, TACACS+ |
| Supported network protocols | IGMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 387 x 43.2 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet, Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
