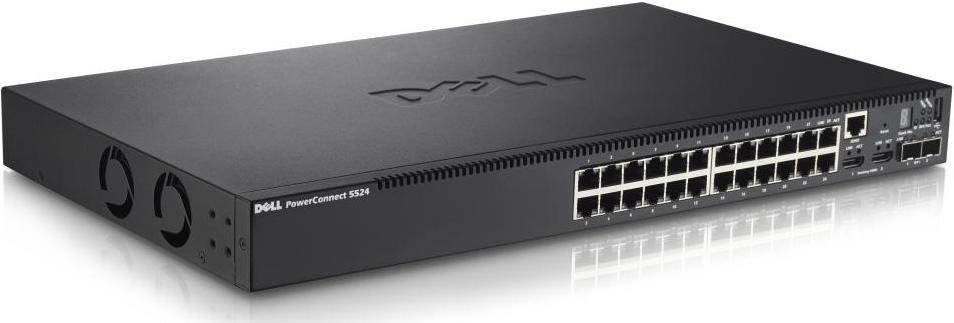

Dell PowerConnect 5524 Managed L3 1U Black
Model 5524Part no. PC5524
34 specifications
- Memory256 MB
- Type1U
- Weight3.33 kg
- ColourBlack
- Switch typeManaged
- SFP/SFP+ slots quantity2
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 3.33 kg
- Colour
- Black
- Switch type
- Managed
- SFP/SFP+ slots quantity
- 2
- Brand
- Dell
- Category
- Network Switch
- Model
- 5524
- Part numbers
- PC5524, 210-34478, 210-34478-1P, 210-34478-1P2M, 210-34478-1P4H, 210-34478-1P4M +23 more
- Also known as
- DELL PowerConnect 5524 Managed L3 1U Black
Specifications
34 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, HTTP, HTTPS/SSL, SSH & SNMP RADIUS, TACACS+ |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 255 mm |
| Height | 432 mm |
| Weight | 3.33 kg |
What people say
Reviews & ratings
Dell PowerConnect 5524 Managed L3 1U Black
No reviews yet
Be the first to tell others how Dell PowerConnect 5524 Managed L3 1U Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerConnect 5524 Managed L3 1U Black

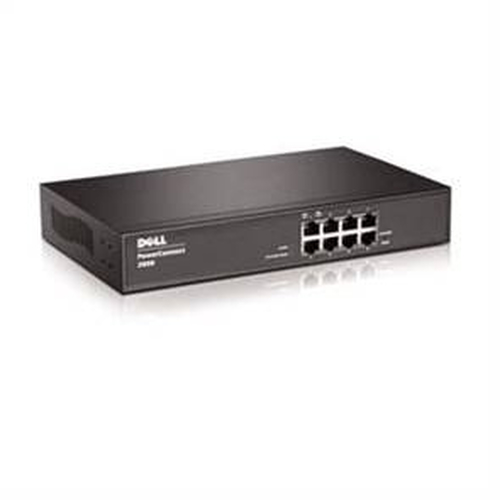

All network switch comparisons- Dell PowerConnect 5524 Managed L3 1U Black vsDell PowerConnect 2808 1U BlackCompare specs

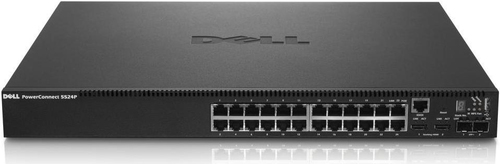

- Dell PowerConnect 5524 Managed L3 1U Black vsDell PowerConnect 5524P Managed L2 1U BlackCompare specs
- Dell PowerConnect 5524 Managed L3 1U Black vsDell PowerConnect 2816 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell PowerConnect 5524 Managed L3 1U Black vsDell PowerConnect 2824 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell PowerConnect 5524 Managed L3 1U Black vsZyxel GS-105S Unmanaged Gigabit Ethernet (10/100/1000) BlackCompare specs
- Dell PowerConnect 5524 Managed L3 1U Black vsHP 3600-48-PoE+ v2 SICompare specs
- Dell PowerConnect 5524 Managed L3 1U Black vsLogiLink NS0060 network switch Managed Power over Ethernet (PoE) 19U BlackCompare specs

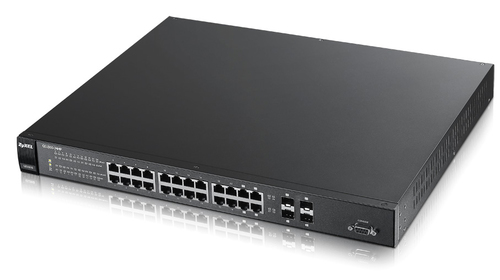

- Dell PowerConnect 5524 Managed L3 1U Black vsZyxel GS1910-24HP Managed L2 Power over Ethernet (PoE) BlackCompare specs
