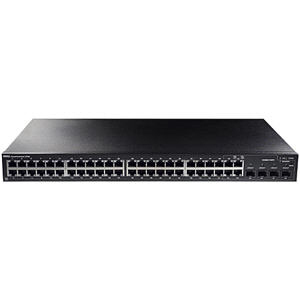

Dell PowerConnect 3548 Managed L3 1U Black
Model 3548Part no. 210-19769-1P4HEAN 5397063839780
42 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Type1U
- Weight8 kg
- ColourBlack
- Switch typeManaged
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 8 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- 3548
- Part numbers
- 210-19769-1P4H, 210-19769-1P4M, 210-19769-1P8M, 210-19769-1YNB, 210-19769-2P, 210-19769-2P2M +22 more
- EAN / UPC
- 5397063839780, 5415247025450, 5742220943006
- Also known as
- DELL PowerConnect 3548 Managed L3 1U Black
Specifications
42 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11n, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 17.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, Telnet, SNMPv1, SNMPv2c, SNMPv3, RMON, TFTP, BootP/DHCP, LLDP-MED |
| Supported network protocols | HTTP, HTTPS/SSL, SSH |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS, TACACS+ |
| Networking features | Gigabit Ethernet, Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8 kg |
