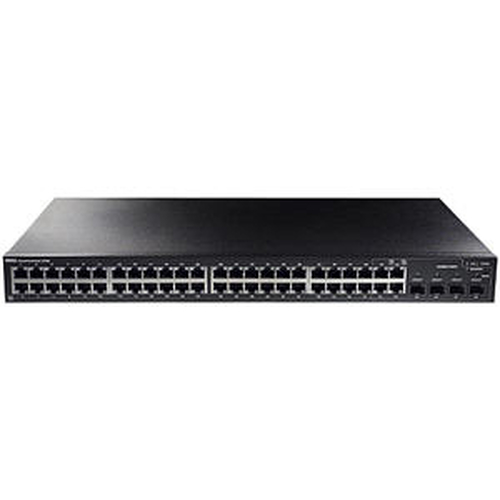

Dell PowerConnect 2808 1U Black
Model 2808Part no. 210-27775-1P4MEAN 7612392306405
33 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Dell
- Category
- Network Switch
- Model
- 2808
- Part numbers
- 210-27775-1P4M, 210-27775-1P8M, 210-27775-1YNB, 210-27775-2P, 210-27775-2P2M, 210-27775-2P4H +22 more
- EAN / UPC
- 7612392306405, 5397063839742, 5415247025481, 5742220410409
- Also known as
- DELL PowerConnect 2808 1U Black
Specifications
33 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 265.5 x 161.7 x 43.2 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 113 °F |
