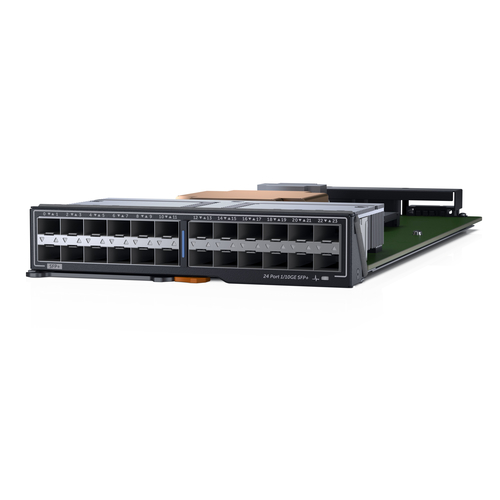

Dell 210-AFEK network switch Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model 210-AFEKEAN 5397063937967
37 specifications
- Memory2000 MB
- Type1U
- Weight2.11 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 2000 MB
- Type
- 1U
- Weight
- 2.11 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Dell
- Category
- Network Switch
- Model
- 210-AFEK
- Part number
- 210-AFEK
- EAN / UPC
- 5397063937967
- Also known as
- DELL 210-AFEK network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
37 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 24 |
| Fiber optic connector | QSFP+ |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Wavelength | 850 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 160000 entries |
| Switching capacity | 2560 Gbit/s |
| Throughput | 1.462 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 4000 entries |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| Buffer size | 9000 KB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 125 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.11 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
