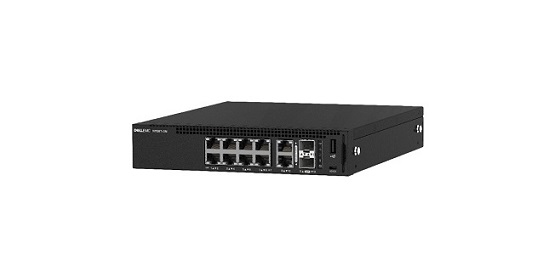

Dell 1108T-ON Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model 1108T-ONPart no. DNN1108T
53 specifications
- Memory1000 MB
- Type1U
- Weight1.61 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 1000 MB
- Type
- 1U
- Weight
- 1.61 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Dell
- Category
- Network Switch
- Model
- 1108T-ON
- Part number
- DNN1108T
- Also known as
- DELL 1108T-ON Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
53 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | SFP |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
| Number of VLANs | 512 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Throughput | 18 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 4000 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 2932 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Flash memory | 1000 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Output power | 24 W |
| Power consumption (max) | 10.47 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 85% |
| Heat dissipation | 35.72 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215.9 mm |
| Depth | 254 mm |
| Height | 44.5 mm |
| Weight | 1.61 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ACMA RCM Class A ICES Class A; cUL CCC Class A; NAL CE Class A VCCI Class A FCC Class A; NRTL UL; FDA 21 CFR 1040.10 EAC GS mark RoHS JEL |
