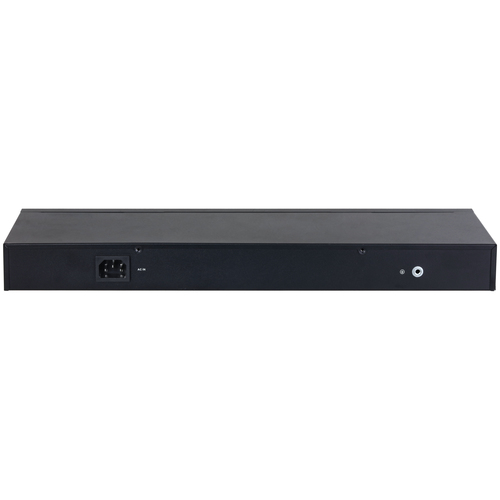

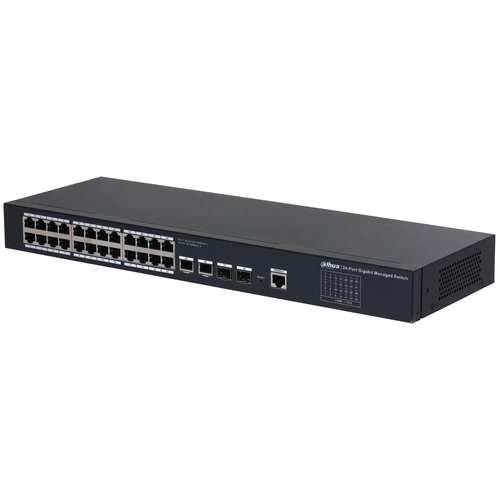

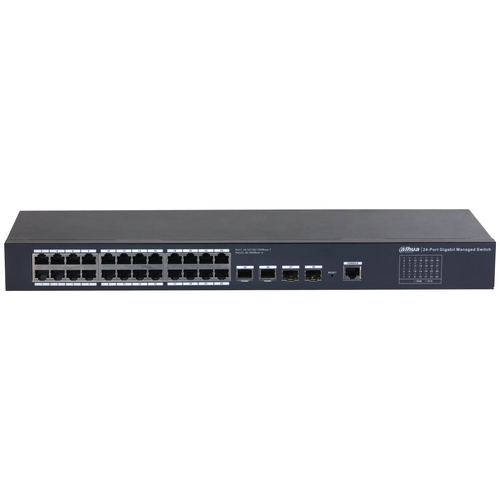

SG4028 Managed L2 Gigabit Ethernet (10/100/1000) Black
Model SG4028Part no. DH-SG4028EAN 6923172594006
52 specifications
- Weight1.57 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity26
- Networking standardsIEEE 802.1x, IEEE 802.3x
- MAC address table8000 entries
Overview
- Weight
- 1.57 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Networking standards
- IEEE 802.1x, IEEE 802.3x
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SG4028
- Part number
- DH-SG4028
- EAN / UPC
- 6923172594006
- Also known as
- Dahua Technology SG4028 Managed L2 Gigabit Ethernet (10/100/1000) Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.664 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 467125.73 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Power consumption (max) | 24 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163.8 mm |
| Depth | 440 mm |
| Height | 43.6 mm |
| Weight | 1.57 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 271 mm |
| Package depth | 520 mm |
| Package height | 107 mm |
| Package weight | 2.25 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
