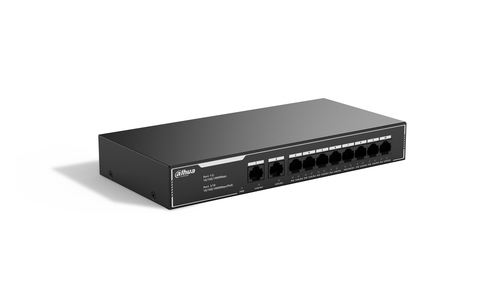

PoE SG1010LP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model SG1010LPPart no. DH-SG1010LPEAN 6923172572073
40 specifications
- Weight800 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 800 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SG1010LP
- Part number
- DH-SG1010LP
- EAN / UPC
- 6923172572073
- Also known as
- Dahua Technology PoE SG1010LP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Iron |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Power consumption (max) | 65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 243 mm |
| Height | 35 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 300 mm |
| Package height | 70 mm |
| Package weight | 1.8 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
