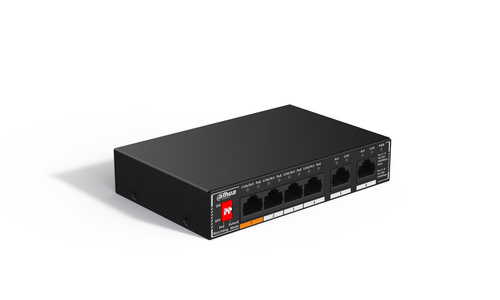

PoE SG1006P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model SG1006PPart no. DH-SG1006PEAN 6923172571441
29 specifications
- Weight300 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 300 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SG1006P
- Part number
- DH-SG1006P
- EAN / UPC
- 6923172571441
- Also known as
- Dahua Technology PoE SG1006P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
29 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 14 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| DC input voltage | 48 - 57 V |
| Input voltage | 57 V |
| Power consumption (max) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 130 mm |
| Height | 26 mm |
| Weight | 300 g |
