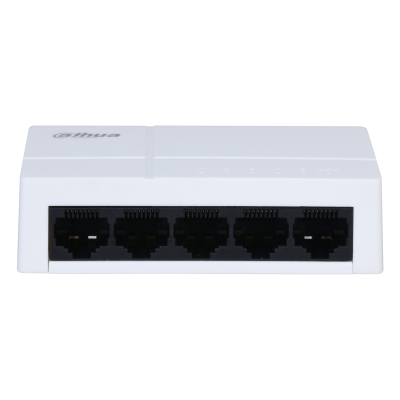

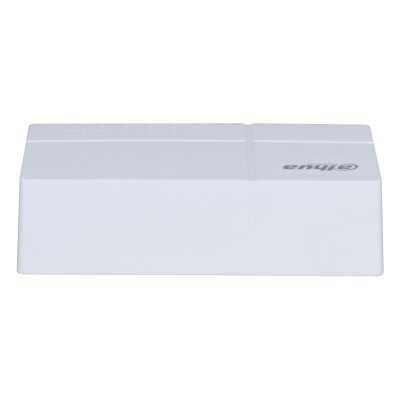

SG1005L-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Model SG1005L-EUR
35 specifications
- Weight120 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 120 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SG1005L-EUR
- Part number
- SG1005L-EUR
- Also known as
- Dahua Technology SG1005L-EUR network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Specifications
35 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 1.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86.4 mm |
| Depth | 52 mm |
| Height | 23 mm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 111 mm |
| Package depth | 94 mm |
| Package height | 67 mm |
| Package weight | 230 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
