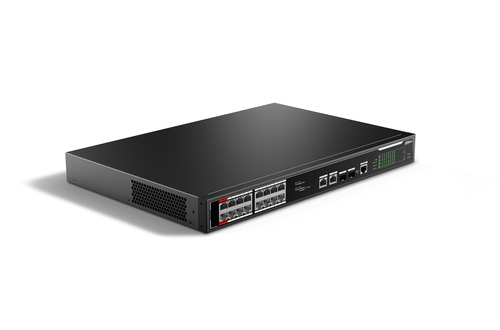

PoE SF4018P-C Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model SF4018P-CPart no. DH-SF4018P-CEAN 6923172572042
49 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity18
- 10G supportNo
- MAC address table4000 entries
- DHCP featuresDHCP client
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 18
- 10G support
- No
- MAC address table
- 4000 entries
- DHCP features
- DHCP client
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF4018P-C
- Part number
- DH-SF4018P-C
- EAN / UPC
- 6923172572042
- Also known as
- Dahua Technology PoE SF4018P-C Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
49 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Uplink ports quantity | 2 |
| Fiber uplink ports quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| Packet buffer memory | 2.75 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Authentication | Port-based authentication |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 190 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 440 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 412 mm |
| Package depth | 527 mm |
| Package height | 110 mm |
